HDR-15-30-60-100-150 DIN Rail Switching Power Supply
- Supports 5V, 12V,24V, 48V applications with flexible voltage settings.
- Features short-circuit, overload, and overvoltage protection.
- Adjustable DC output ensures stable and reliable power delivery.
- Built-in constant current limiting circuit.
- Easily mounts onto standard DIN rails.
- Cooled via natural air convection.
Product Overview & Applications:
The HDR series DIN-rail switching power supply is a high-performance, highly reliable solution designed to power industrial automation, control systems, and equipment. Featuring a wide input voltage range, the series adapts to diverse power environments, ensuring stable equipment operation under various working conditions.
Designed for DIN-rail mounting, these power supplies facilitate quick installation and maintenance within distribution cabinets, saving space while enhancing system neatness. Additionally, the HDR series offers a variety of output power specifications to meet diverse application needs, making it an ideal power solution for the industrial sector.
Technical Parameters

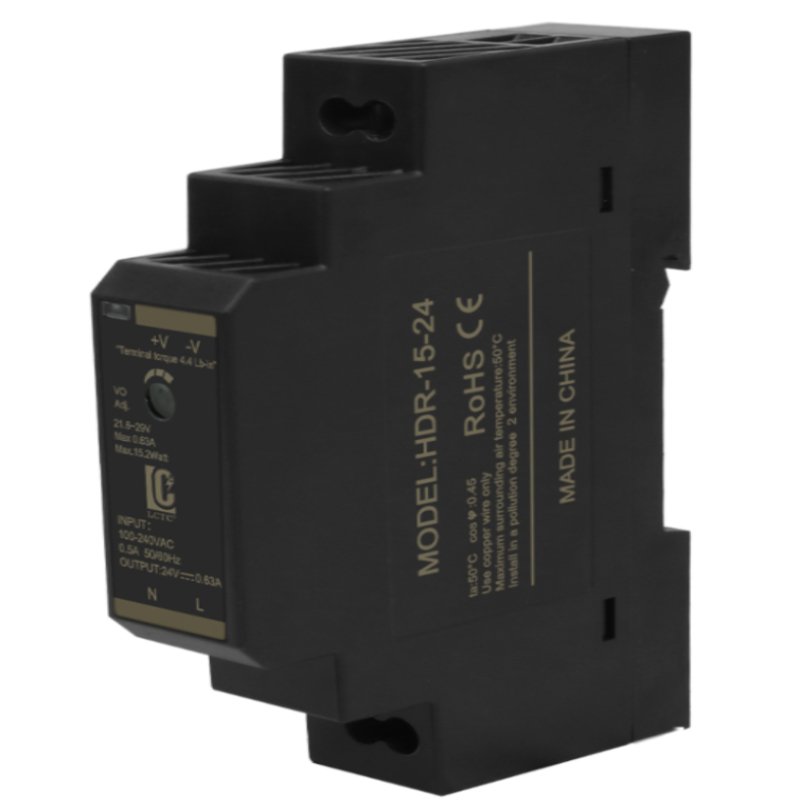

HDR-15 Learn more about this product.
Product Specifications | |||||
| Category | Model Number | HDR-15-5 | HDR-15-12 | HDR-30-24 | HDR-30-48 |
| Output | DC Voltage | 5V | 12V | 24V | 48V |
| Current Range | 0~2.4A | 0~1.25A | 0~0.635A | 0~0.32A | |
| Rated Power | 15W | ||||
| Ripple Coefficient | 80mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| Input | Voltage Range | 100~240VAC 50Hz~60Hz (140VDC~340VDC) | |||
| Impulse Current | Cold Cranking Current 25A/115V 45A/230V | ||||
| Protect | Overload Protection | 115~150% Hiccup Mode; Cut-off Output; Automatic Recovery | |||
| Environmental Science | Operating Temperature | -10℃~+60℃ | |||
| Operating Humidity | 10%~80%RH | ||||
| Safety Regulations | Withstand Voltage | Inter-input-output:1.5KVAC | |||

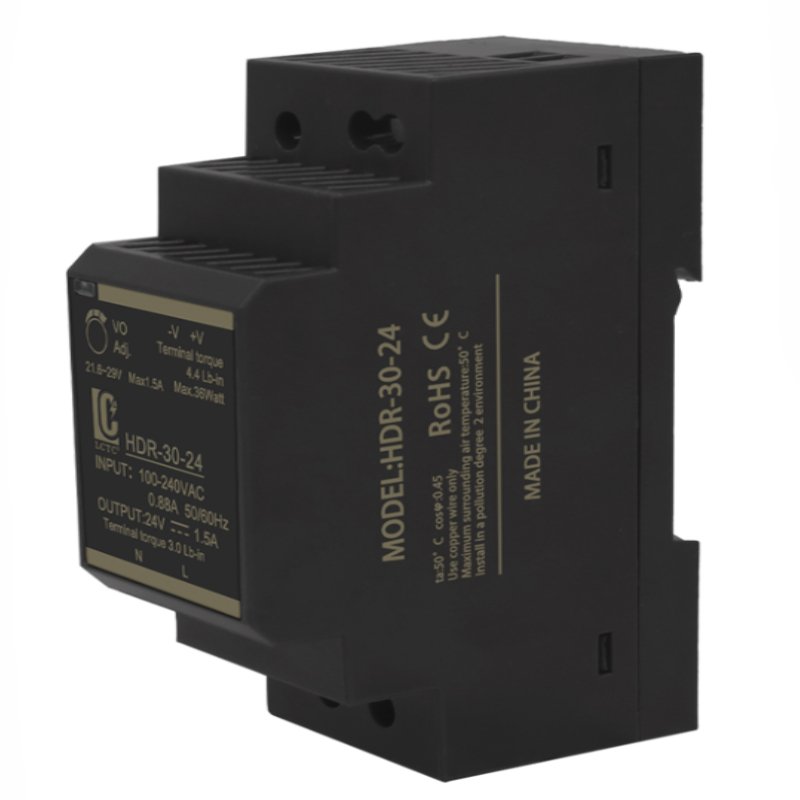

HDR-30 Learn more about this product.
Product Specifications | |||||
| Category | Model Number | HDR-30-5 | HDR-30-12 | HDR-30-24 | HDR-30-48 |
| Output | DC Voltage | 5V | 12V | 24V | 48V |
| Current Range | 0~3A | 0~2A | 0~1.5A | 0~0.75A | |
| Rated Power | 30W | ||||
| Ripple Coefficient | 80mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| Input | Voltage Range | 100~240VAC 50Hz~60Hz (140VDC~340VDC) | |||
| Impulse Current | Cold Cranking Current 25A/115V 45A/230V | ||||
| Protect | Overload Protection | 115~150% Hiccup Mode; Cut-off Output; Automatic Recovery | |||
| Environmental Science | Operating Temperature | -10℃~+60℃ | |||
| Operating Humidity | 10%~80%RH | ||||
| Safety Regulations | Withstand Voltage | Inter-input-output:1.5KVAC | |||
| Standard | Size | 35×90×54.5mm | |||
| Weight/Packaging | 0.12KG / 90PCS / 15KG | ||||

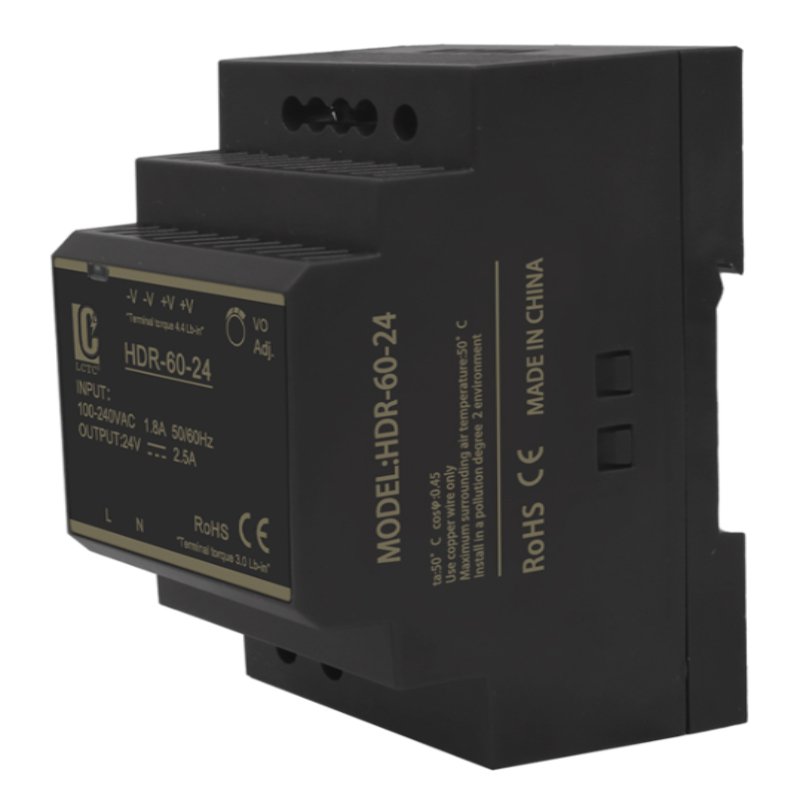

HDR-60 Learn more about this product.
Product Specifications | |||||
| Category | Model Number | HDR-60-5 | HDR-60-12 | HDR-60-24 | HDR-60-48 |
| Output | DC Voltage | 5V | 12V | 24V | 48V |
| Current Range | 0~6.5A | 0~4.5A | 0~2.5A | 0~1.25A | |
| Rated Power | 60W | 60W | 60W | 60W | |
| Ripple Coefficient | 80mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| Input | Voltage Range | 100~240VAC 50Hz~60Hz (140VDC~340VDC) | |||
| Impulse Current | 30A/115V 60A/230V | ||||
| Protect | Overload Protection | 115~150% Constant Current Limit | |||
| Environmental Science | Operating Temperature | -10°C~+60°C | |||
| Operating Humidity | 10%~80%RH | ||||
| Safety Regulations | Withstand Voltage | 1.5KVAC | |||
| Standard | Size | 52.5×90×54.5mm | |||
| Weight/Packaging | 0.18KG/60PCS/13KG | ||||

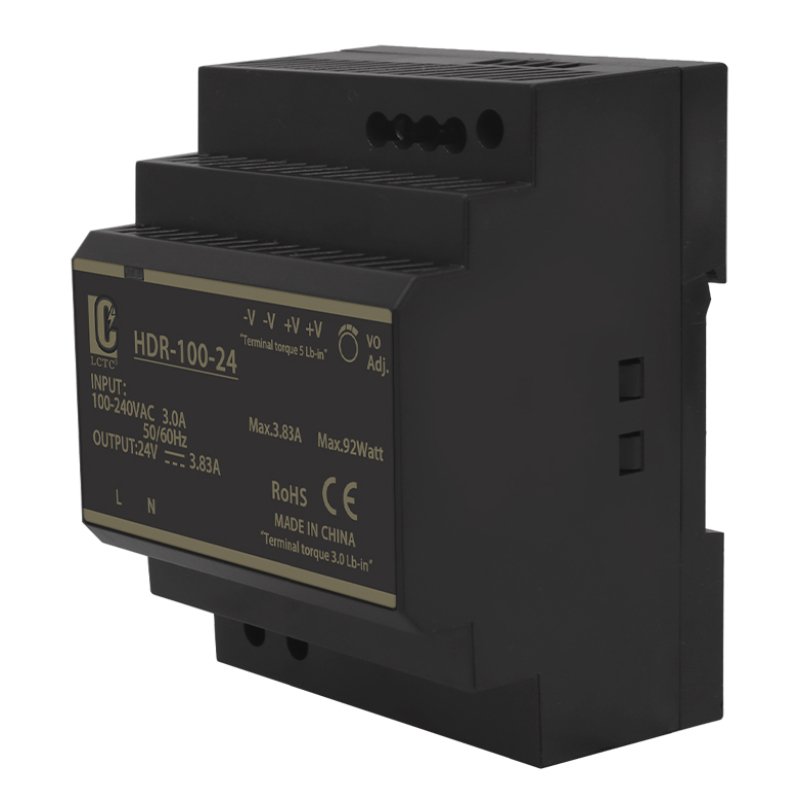

HDR-100 Learn more about this product.
Product Specifications | ||||
| Category | Model Number | HDR-100-12 | HDR-100-24 | HDR-100-48 |
| Output | DC Voltage | 12V | 24V | 48V |
| Current Range | 0~7.3A | 0~5A | 0~2.08A | |
| Rated Power | 100W | 100W | 100W | |
| Ripple Coefficient | 120mVp-p | 150mVp-p | 240mVp-p | |
| Input | Voltage Range | 100~240VAC 50Hz~60Hz (140VDC~340VDC) | ||
| Impulse Current | 30A/115V 70A/230V | |||
| Protect | Overload Protection | 115~150% Constant Current Limit | ||
| Environmental Science | Operating Temperature | -10°C~+60°C | ||
| Operating Humidity | 10%~80%RH | |||
| Safety Regulations | Withstand Voltage | 1.5KVAC | ||
| Standard | Size | 70×90×54.5mm | ||
| Weight/Packaging | 0.25KG/50PCS/15KG | |||

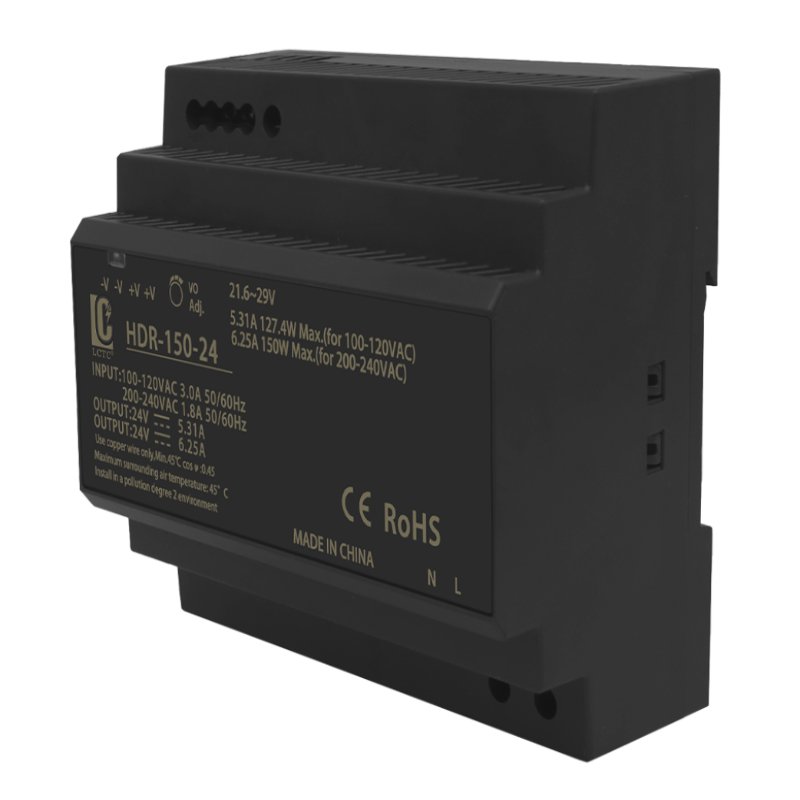

HDR-150 Learn more about this product.
Product Specifications | ||||
| Category | Model Number | HDR-150-12 | HDR-150-24 | HDR-150-48 |
| Output | DC Voltage | 12V | 24V | 48V |
| Current Range | 0~11.3A | 0~6.25A | 0~3.2A | |
| Rated Power | 150W | 150W | 150W | |
| Ripple Coefficient | 120mVp-p | 150mVp-p | 240mVp-p | |
| Input | Voltage Range | 100~240VAC 50Hz~60Hz (140VDC~340VDC) | ||
| Impulse Current | 30A/115V 70A/230V | |||
| Protect | Overload Protection | 115~150% Constant Current Limit | ||
| Environmental Science | Operating Temperature | -10°C~+60°C | ||
| Operating Humidity | 10%~80%RH | |||
| Safety Regulations | Withstand Voltage | 1.5KVAC | ||
