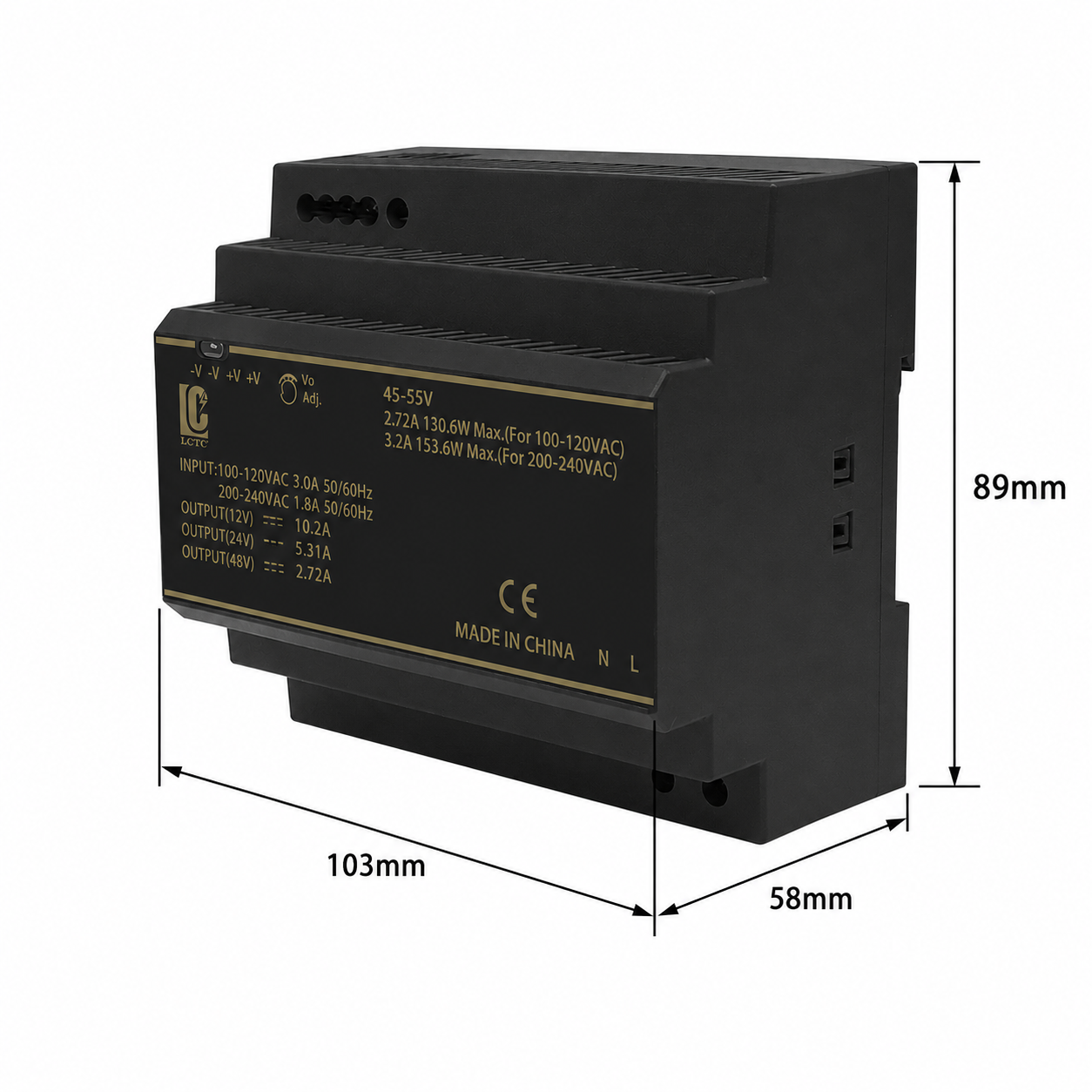

HDR-150 DIN Rail Switching Power Supply
- Supports 12V,24V, 48V applications with flexible voltage settings.
- Features short-circuit, overload, and overvoltage protection.
- Adjustable DC output ensures stable and reliable power delivery.
- Built-in constant current limiting circuit.
- Easily mounts onto standard DIN rails.
- Cooled via natural air convection.
Product Overview & Applications:
The HDR series DIN-rail switching power supply is a high-performance, highly reliable solution designed to power industrial automation, control systems, and equipment. Featuring a wide input voltage range, the series adapts to diverse power environments, ensuring stable equipment operation under various working conditions.
Designed for DIN-rail mounting, these power supplies facilitate quick installation and maintenance within distribution cabinets, saving space while enhancing system neatness. Additionally, the HDR series offers a variety of output power specifications to meet diverse application needs, making it an ideal power solution for the industrial sector.
Technical Parameters
Product Specifications | ||||
| Category | Model Number | HDR-150-12 | HDR-150-24 | HDR-150-48 |
| Output | DC Voltage | 12V | 24V | 48V |
| Current Range | 0~11.3A | 0~6.25A | 0~3.2A | |
| Rated Power | 150W | 150W | 150W | |
| Ripple Coefficient | 120mVp-p | 150mVp-p | 240mVp-p | |
| Input | Voltage Range | 100~240VAC 50Hz~60Hz (140VDC~340VDC) | ||
| Impulse Current | 30A/115V 70A/230V | |||
| Protect | Overload Protection | 115~150% Constant Current Limit | ||
| Environmental Science | Operating Temperature | -10°C~+60°C | ||
| Operating Humidity | 10%~80%RH | |||
| Safety Regulations | Withstand Voltage | 1.5KVAC | ||
