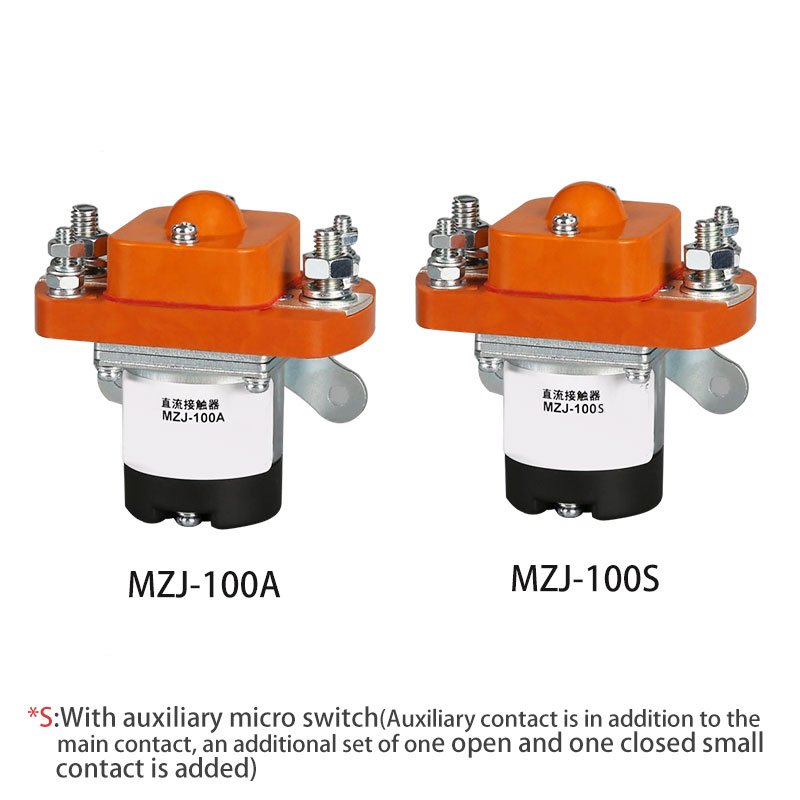

MZJ-A DC Contactor Series
- 105℃ High Temperature Resistance.
- 6V–120V Wide Voltage Support.
- Suitable for Automotive & Industrial Applications.
- Single Coil Design for Easy Installation.
- 100A High Load Capacity.
Product Overview & Applications:
Compatible with a broad voltage range from 6V to 120V, it built to withstand heavy duty use with a high load capacity of 100A 1NO.
Technical Parameters
Product Specifications | |||||||
| Parameter | MZJ-50A | MZJ-100A | MZJ-200A | MZJ-400A | MZJ-600A | MZJ-800A | MZJ-1000A |
| Rated Load Current | 50A | 100A | 200A | 400A | 600A | 800A | 1000A |
| Contact Form | 1NO (Normally Open) | ||||||
| Coil Rated Voltage (DC) | 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V | ||||||
| Contact Rated Voltage | ≤ 80V DC | ||||||
| Max. Switching Capacity (5ms) | 600A/5ms | 800A/5ms | 1000A/5ms | 1500A/5ms | 2000A/5ms | 3000A/5ms | 3000A/5ms |
| Pick-up Time | 15ms | 12ms | 15ms | 25ms | 30ms | 30ms | 30ms |
| Release Time | 5ms | 8ms | 10ms | 10ms | 10ms | 15ms | 15ms |
| Load Terminal | M5 | M6 | M8 | M10 | M12 | 2-M12 | — |
| Coil Terminal | M4 screw | ||||||
| Contact Material | AgCdO | ||||||
| Electrical Life | 20,000 times | ||||||
| Mechanical Life | 300,000 times | ||||||
| Duty Cycle | Continuous | ||||||
| Insulation Resistance | 20 MΩ | ||||||
| Dielectric Strength | 50Hz/60Hz, 1000VAC, 1 min | ||||||
| Ambient Temperature | -25°C ~ +70°C | ||||||
| Relative Humidity | 98% RH at +20°C | ||||||
| Vibration Resistance | 3G, 1~50Hz, 0.5mm amplitude | ||||||
| Shock Resistance | 60~100 times/min, acceleration ≤4g | ||||||
| Max. Altitude | 2000 m | ||||||
| Protection Class | IP40 | ||||||
| Certification | CE | ||||||
| Auxiliary Contact (Optional) | 2A/48VDC, 5A/24VDC | ||||||
