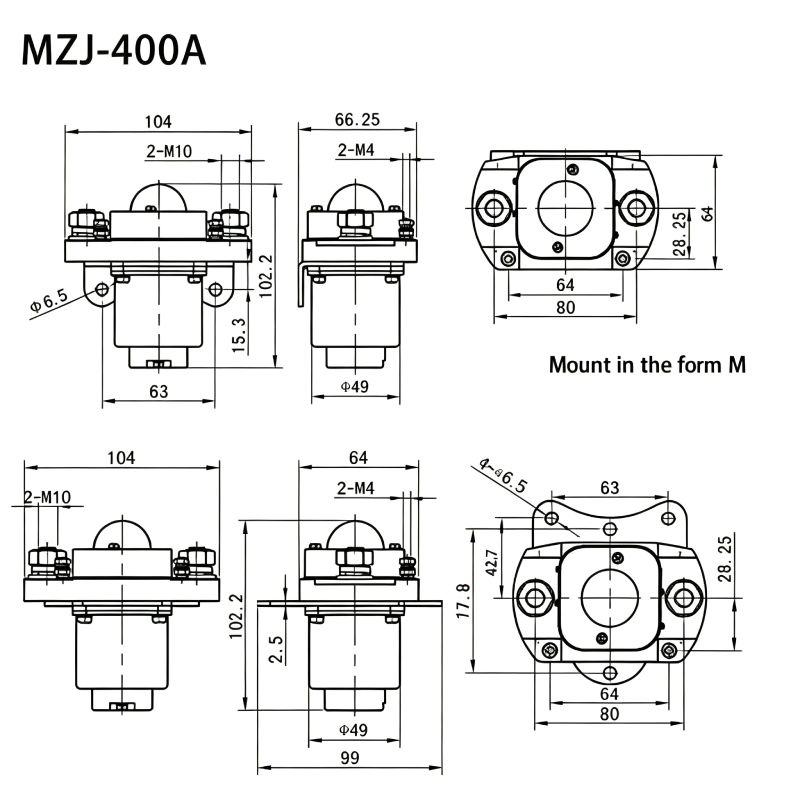

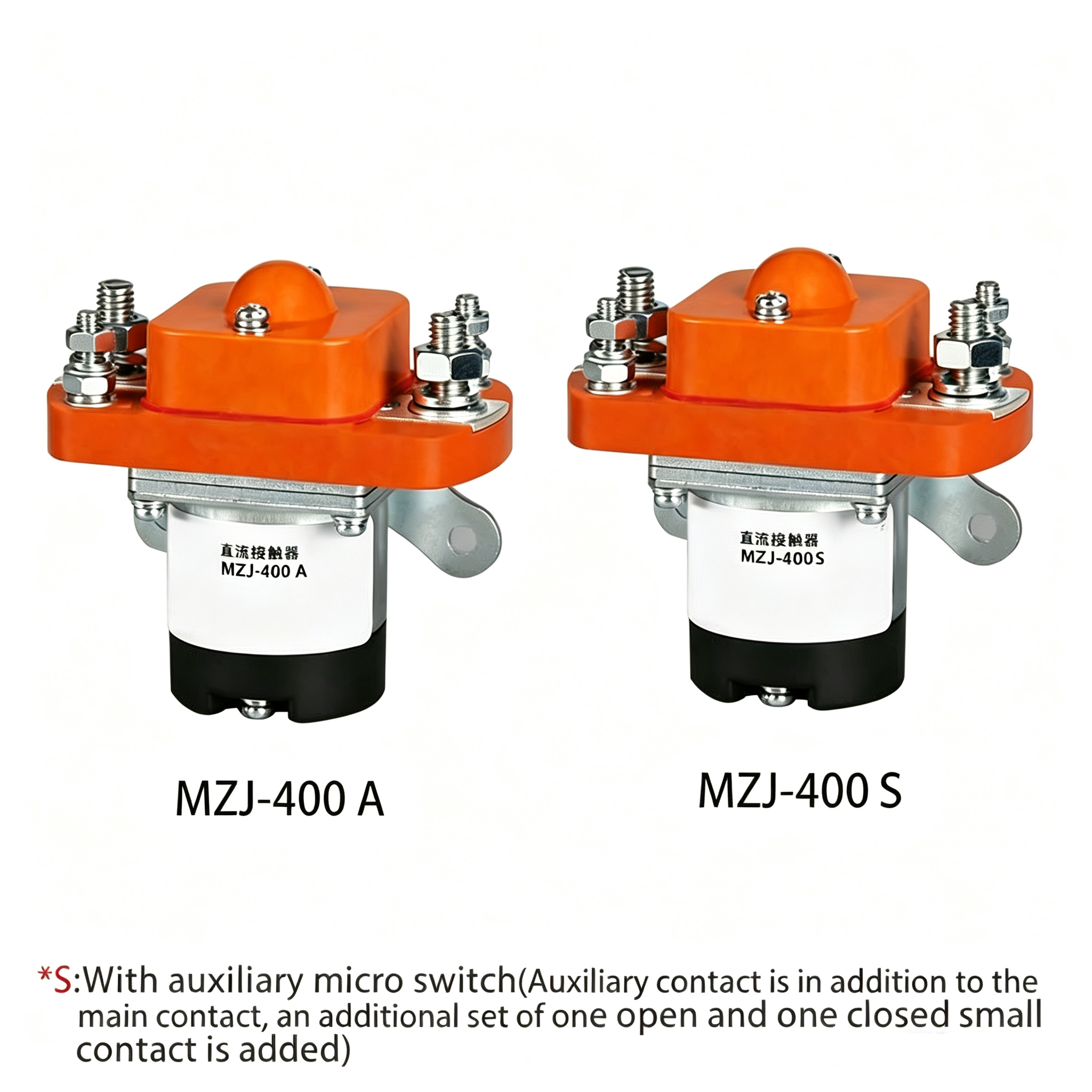

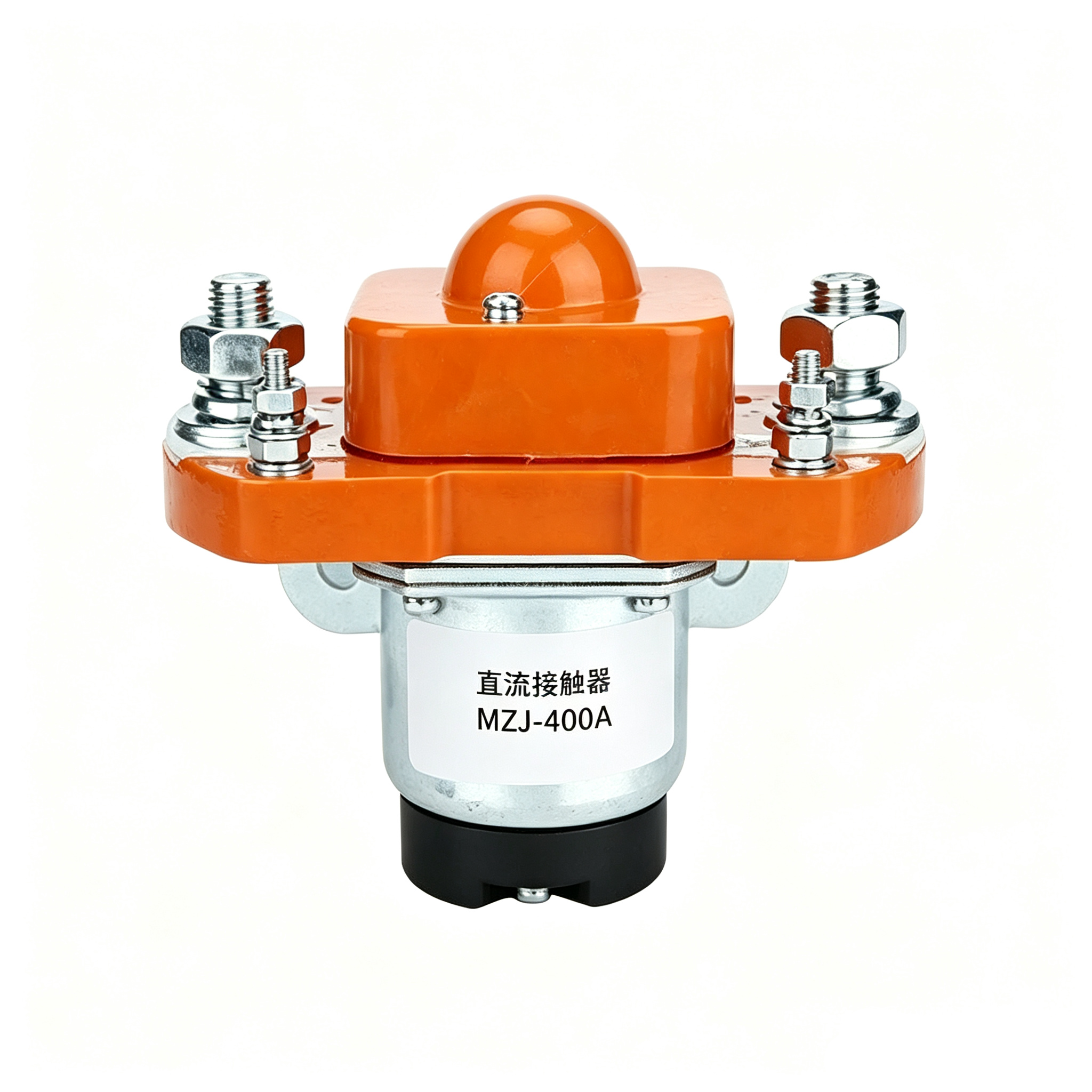

MZJ-400A DC Contactor
- 105℃ High Temperature Resistance.
- 6V–120V Wide Voltage Support.
- Suitable for Automotive & Industrial Applications.
- Single Coil Design for Easy Installation.
- 100A High Load Capacity.
Product Overview & Applications:
Compatible with a broad voltage range from 6V to 120V, it built to withstand heavy duty use with a high load capacity of 100A 1NO.
Technical Parameters
Product Specifications | |
| Parameter | MZJ-400A |
| Rated Load Current | 400A |

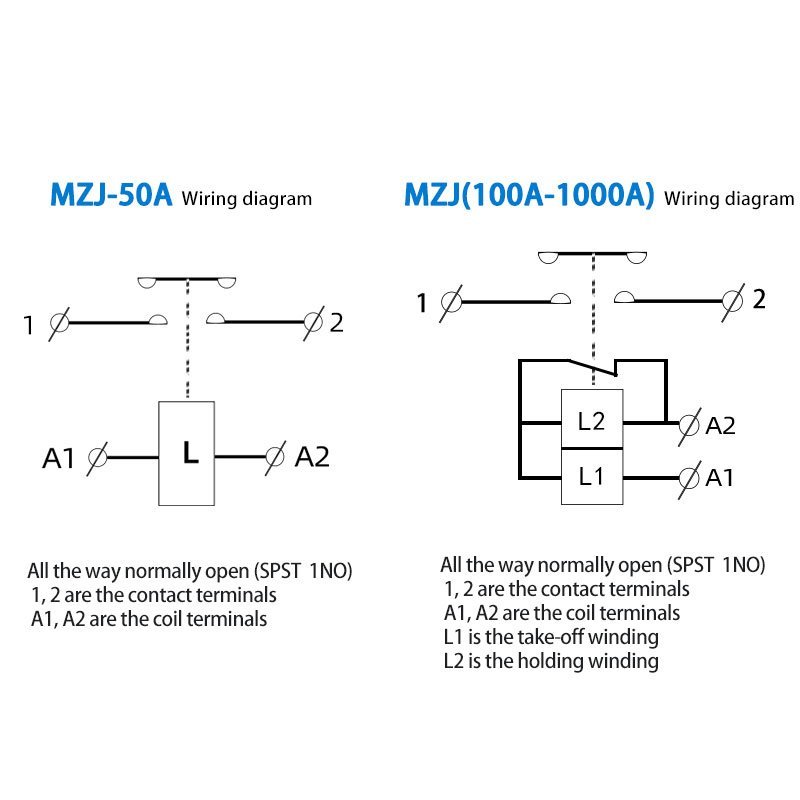

| Contact Form | 1NO (Normally Open) |
| Coil Rated Voltage (DC) | 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V，220V |
| Contact Rated Voltage | ≤ 80V DC |
| Max. Switching Capacity (5ms) | 1500A/5ms |
| Pick-up Time | 25ms |
| Release Time | 10ms |
| Load Terminal | M10 |
| Coil Terminal | M4 screw |
| Contact Material | AgCdO |
| Electrical Life | 20,000 times |
| Mechanical Life | 300,000 times |
| Duty Cycle | Continuous |
| Insulation Resistance | 20 MΩ |
| Dielectric Strength | 50Hz/60Hz, 1000VAC, 1 min |
| Ambient Temperature | -25°C ~ +70°C |
| Relative Humidity | 98% RH at +20°C |
| Vibration Resistance | 3G, 1~50Hz, 0.5mm amplitude |
| Shock Resistance | 60~100 times/min, acceleration ≤4g |
| Max. Altitude | 2000 m |
| Protection Class | IP40 |
| Certification | CE |

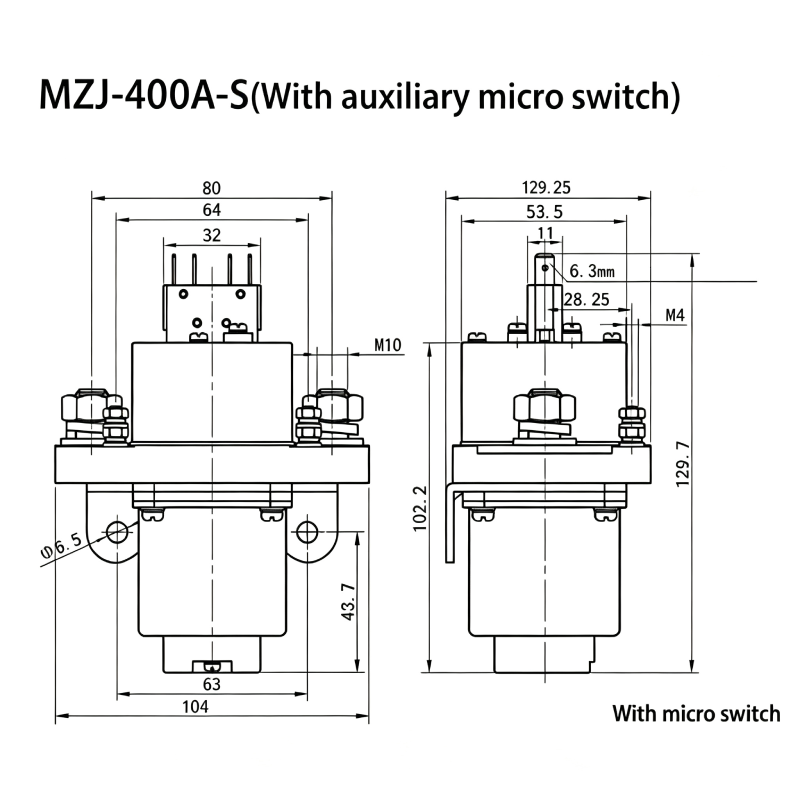

| Auxiliary Contact (Optional) | 2A/48VDC, 5A/24VDC |
