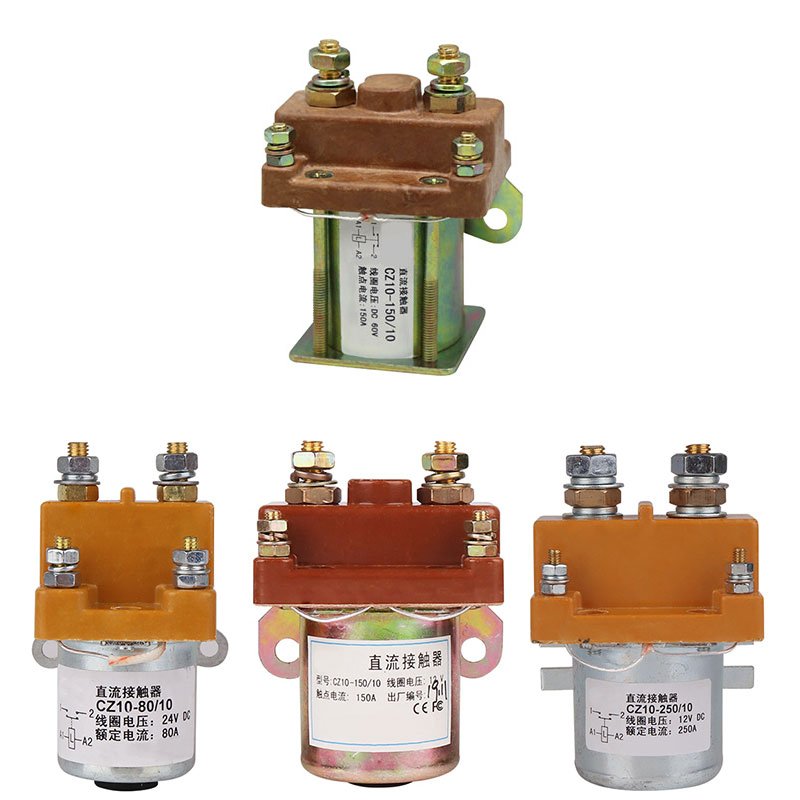

Product Overview & Applications:
Technical Parameters

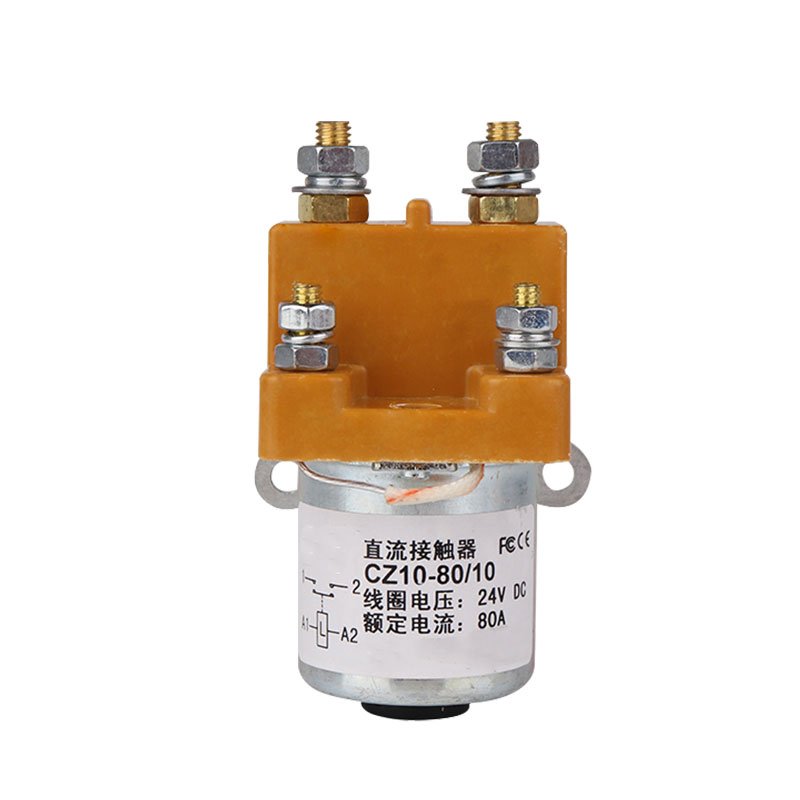

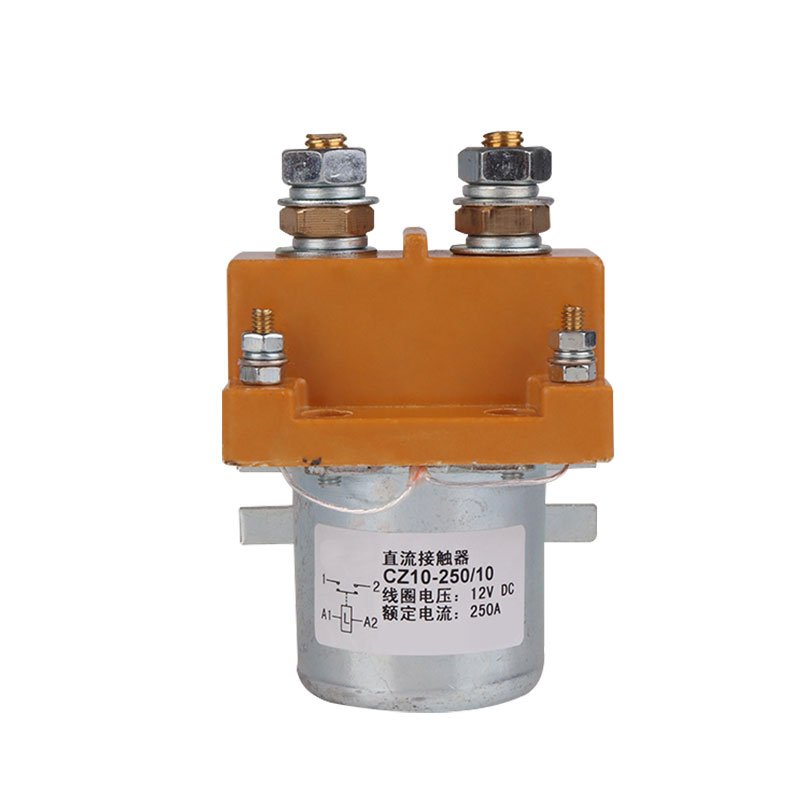

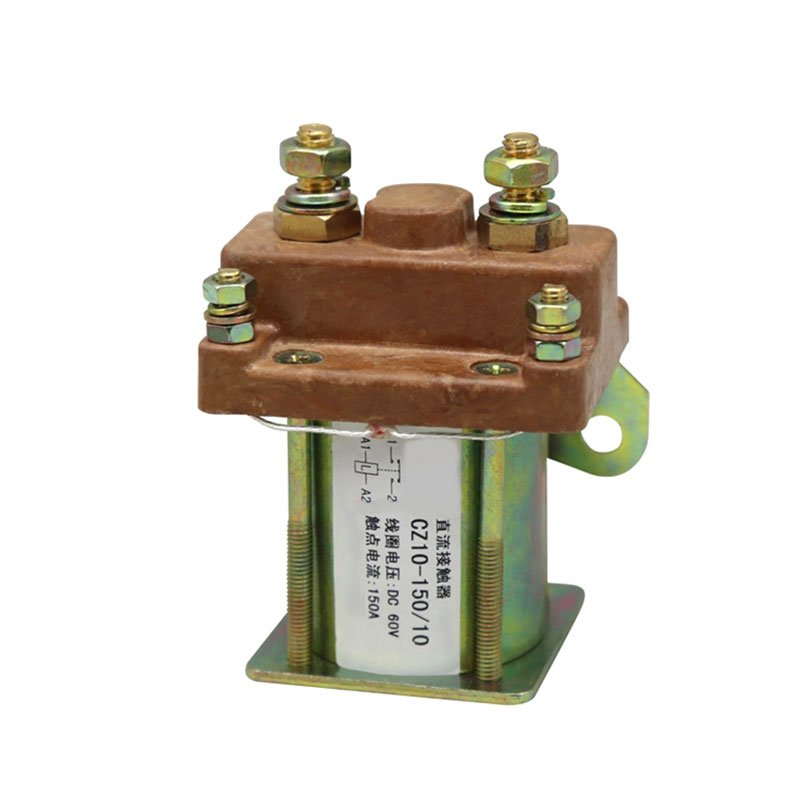

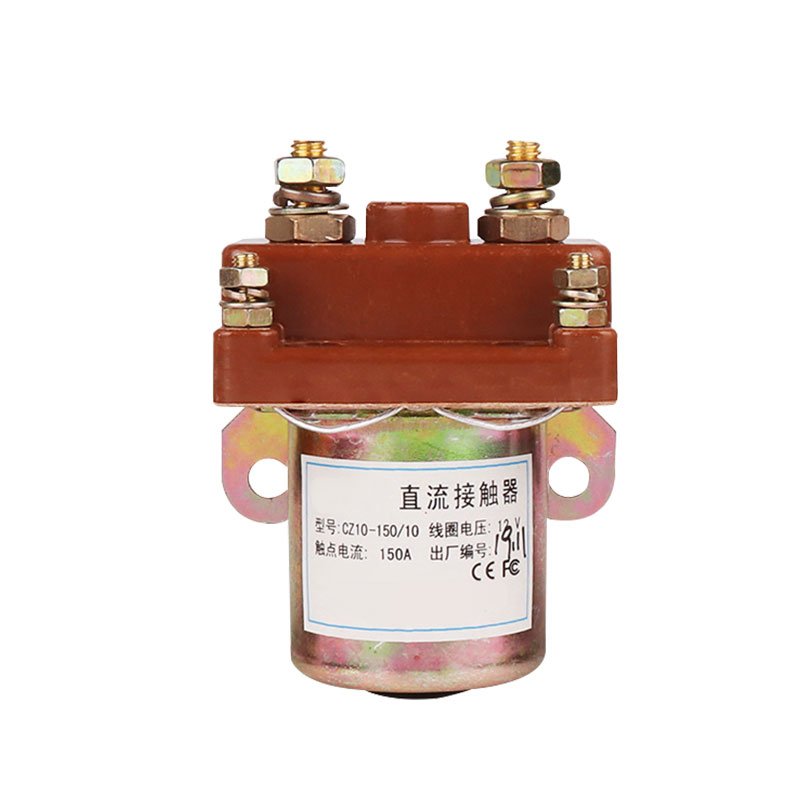

Product Specifications | ||||
| Model | CZ10-80 | CZ10-150 | CZ10-150L | CZ10-250 |
| Contact Type | Normally Open | |||
| Coil Rated Voltage (DC) | 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V, etc. | |||
| Contact Rated Voltage (DC) | ≤ 60V | |||
| Rated Load Current at 48V DC (DC-1) | 80A | 150A | 150A | 250A |
| Main Contact Voltage Drop (20A Load) | ≤ 80mV | |||
| Pick-up Voltage at (20±5)°C (Cold State) | ≤ 70% of rated voltage | |||
| Release Voltage at (20±5)°C (Cold State) | ≥ 5%, ≤ 35% of rated voltage | |||
| Coil Operating Voltage Range at 40°C | 0.8 – 1.2 × Us | |||
| Pick-up Time | 25ms | |||
| Release Time | 10ms | |||
| Max. Contact Bounce Time (Make) | 10ms | |||
| Max. Contact Bounce Time (Break) | 3ms | |||
| Insulation Resistance | 20 MΩ | |||
| Dielectric Strength | 50Hz/60Hz, 1000VAC, 1 minute | |||
| Max. Switching Capacity (Main Contact, 5ms) | 600A / 5ms at 48V DC | 800A/5ms at 48V DC | 800A/5ms at 48V DC | 1000A/5ms at 48V DC |
| Coil Power Consumption | 5 – 10 W | 8–13 | 5–10 | 10–15 |
| Coil Temperature Rise | ≤ 60 K | |||
| Terminal Temperature Rise | ≤ 65 K | |||
| Electrical Life | 20,000 times | |||
| Mechanical Life | 300,000 times | |||
| Duty Cycle | Continuous | |||
| Contact Material | Silver Alloy | |||
| Load Terminal Type | M5 Screw | M6 screw | M6 screw | M8 screw |
| Coil Terminal Type | M4 Screw | |||
| Certification | CE, FCC, RoHS | |||

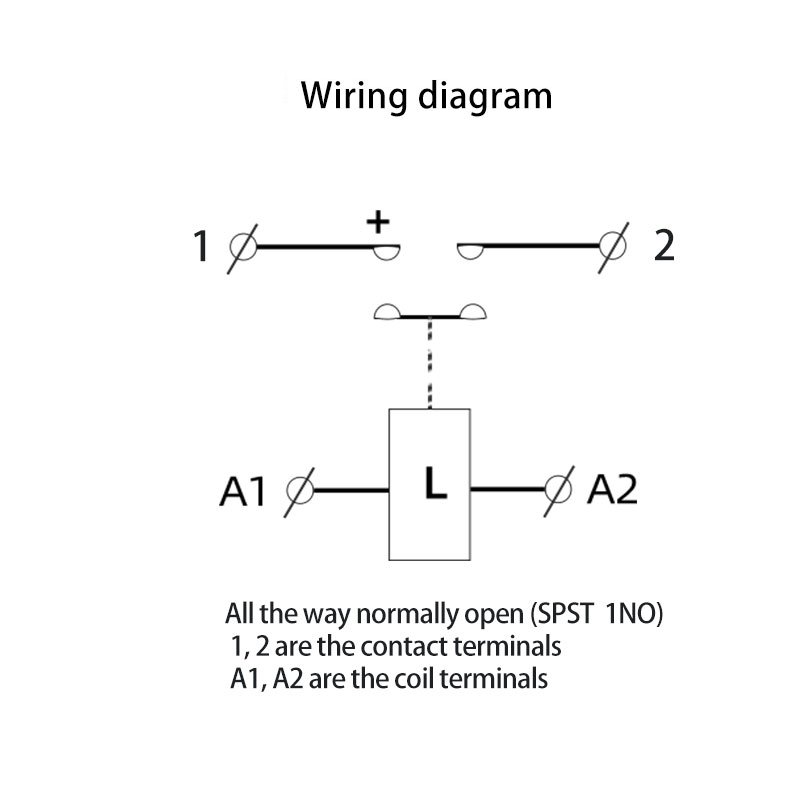

Wiring Diagram
