LPV-25-60-100-200-350-650 Waterproof Type Switching Power Supply
- Supports 12V,24V applications with flexible voltage settings.
- Built-in constant current limiting circuit.
- Efficiency reaches up to 94%
- Maximum output power of 650W
- The operating temperature range extends up to -30°C to 70°C.
Product Overview & Applications:
The LSR series of enclosed power supplies is a high-performance, highly reliable power solution designed to power industrial automation, control systems, and various types of equipment. Featuring a wide input voltage range, the series adapts to diverse power environments, ensuring stable equipment operation under various conditions.
Additionally, the series offers a range of output power specifications to meet diverse application needs, making it an ideal power solution for the industrial sector.
Technical Parameters
LPV-25 Learn more about this product.
Product Specifications | |||||
| Model number | LPV-25-12 | LPV-25-15 | LPV-25-24 | LPV-25-27 | |
| Output | DC Voltage | 12V | 15V | 24V | 27V |
| Rated Current | 2A | 1.6A | 1A | 0.9A | |
| Current Range | 0~2A | 0~1.6A | 0~1A | 0~0.9A | |
| Rated Power | 24W | 24W | 24W | 24.3W | |
| Ripple & Noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| Voltage Accuracy | ±3.0% | ±2.0% | ±1.0% | ±1.0% | |
| Linear Adjustment Rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation Rate | ±2.0% | ±1.0% | ±0.5% | ±0.5% | |
| Start-up, Rise Time | 500ms, 80ms/230VAC (Full Load) | ||||
| Hold Time (Typ.) | 16ms/230VAC (Full Load) | ||||
| Input | Voltage Range | 95~264VAC / 135~373VDC | |||
| Frequency Range | 47~63Hz | ||||
| Efficiency (Typ.) | 83.50% | 83.50% | 84.50% | 84.50% | |
| AC Input Current | 0.5A/115V, 0.28A/230VAC | ||||
| Impulse Current | Cold Start: 25A/230VAC | ||||
| Leakage Current | <2mA/240VAC | ||||
| Protection | Overload | 110%~150% Rated Output Power, Hiccup Mode, Auto Recovery After Fault Removed | |||
| Environment | Operating Temperature | -20°C~+60°C (Refer To Derating Curve) | |||
| Working Humidity | 20~90% RH, No Condensation | ||||
| Storage Temp. & Humidity | -40~+85°C, 10~95% RH | ||||
| Vibration Resistance | 10~500Hz, 3G, 10min/1cycle, X,Y,Z Axis Each 60min | ||||
| Safety and EMC | Safety Regulations | UL60950-1, TUV EN60950-1 Certified, IP67 | |||
| Pressure Resistance | O/P-FG:0.5KVAC; I/P-O/P:1.5KVAC; I/P-FG:1.5KVAC | ||||
| Insulation Impedance | I/P-O/P, I/P-FG, O/P-FG >100MΩ / 500VDC / 25°C / 70%RH | ||||
| EMC Emissions | Complies With EN55022 Class A | ||||
| Others | Size | 182×30×20mm | |||
LPV-60 Learn more about this product.
Product Specifications | |||
| Model number | LPV-60-12 | LPV-60-24 | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 5A | 2.5A | |
| Current Range | 0~5.0A | 0~2.5A | |
| Rated Power | 60W | ||
| Ripple & Noise | 150mVp-p | 200mVp-p | |
| Voltage Accuracy | ±5.0% | ||
| Linear Adjustment Rate | ±1.0% | ||
| Load Regulation Rate | ±2.0% | ||
| Start-up, Rise Time | 500ms, 50ms/115VAC 500ms, 50ms/230VAC | ||
| Hold Time (Typ.) | 18ms/115VAC 20ms/230VAC | ||
| Input | Voltage Range | 100~240VAC | |
| Frequency Range | 50~60Hz | ||
| Efficiency (Typ.) | 88% | ||
| AC Input Current | 1.2A/115VAC | ||
| Surge Current | Cold Start 60A (width=900us tested at 50% Ipeak)/230VAC; Cold Start 70A (width=900us tested at 50% Ipeak)/115VAC | ||
| Leakage Current | 2.8mA/240VAC | ||
| Protection | Overload | 110~150% Rated Output Power, Hiccup Mode, Auto Recovery After Fault Removed | |
| Over Voltage | 13.5~18V | 27~35V | |
| Over Voltage Protection | Turn off output voltage, restore after restart | ||
| Over Temperature | Turn off output voltage and automatically recover after temperature drops | ||
| Environment | Operating Temperature | -20~+65°C (Derating Curve) | |
| Working Humidity | 20~90% RH, no condensation | ||
| Storage Temp. & Humidity | -40~+80°C, 10~95% RH | ||
| Temperature Coefficient | ±0.03%/°C (0~50°C) | ||
| Vibration | 10~500Hz, 2G 10min/cycle, 60 minutes each for X, Y, Z axes | ||
| Safety and EMC | Safety Regulations | Blank type: UL8750, CSA C22.2 No 250.13-12, UL879, CSA C22.2 No207-M89, BIS IS15885 (LPV-60-12,24 models only), EAC TP TC 004, IP67 certified; L type: UL8750 (type “HL”), CSA C22.2 No 250.13-12, UL879, CSA C22.2 No. 207-M89, IP67 certified | |
| Pressure Resistance | I/P-O/P:3KVAC | ||
| Insulation Impedance | I/P-O/P >100M Ohms/500VDC/25°C/70% RH | ||
| EMC Emissions | Blank type: Complies with EN55032 (CISPR32) Class B, EN61000-3-2,3, L type: Compliant with FCC Part 15 | ||
| Others | Size | 149×43×34mm | |
LPV-100 Learn more about this product.
Product Specifications | ||||
| Model Number | LPV-100-5 | LPV-100-12 | LPV-100-15 | LPV-100-24 |
| DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 15A | 8.5A | 6.7A | 4.2A |
| Rated Power | 75W | 102W | 100.5W | 100.8W |
| Ripple & Noise | <80mV | <120mV | <120mV | <150mV |
| Output Voltage Range | 4.75~5.5V | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V |
| Voltage Accuracy | ±5.0% | |||
| Line Regulation | ±1.0% | |||
| Load Regulation | ±2.0% | |||
| Setup/Rise/Hold Time | 2000ms,25ms,15ms(115VAC) / 2000ms,25ms,50ms(230VAC) | |||
| Input Voltage Range | 90~264VAC,47~63Hz or 127~370VDC | |||
| Efficiency (Typ.) | >80% | >85% | >85% | >88% |
| AC Current (Typ.) | 2.2A/110VAC,1.2A/230VAC | |||
| Inrush Current | 60A @ 220VAC | |||
| Overload Protection | 105%~135%, Hiccup Mode, Auto Recovery | |||
| Overvoltage Protection | 115%~145%, Hiccup Mode, Auto Recovery | |||
| Operating Temperature | -30°C~+70°C | |||
| Working Humidity | 20%~90%RH, Non-condensing | |||
| Storage Temperature & Humidity | -40°C~+85°C,10%~95%RH | |||
| Withstand Voltage | I/P-O/P:3KVAC | |||
| Leakage Current | <2.5mA @ 240VAC | |||
| Insulation Resistance | Input-Output, Input-Case, Output-Case:500VDC/100MΩ | |||
| Dimensions | 190×49×34mm | |||
LPV-200 Learn more about this product.
Product Specifications | ||||||
| Model Number | LPV-200-12 | LPV-200-13.5 | LPV-200-15 | LPV-200-24 | LPV-200-27 | LPV-200-48 |
| DC Output Voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
| DC Output Current | 16.5A | 14.7A | 13A | 8.3A | 7.4A | 4.2A |
| Error | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% |
| Ripple & Noise Range | 150mV | 150mV | 150mV | 150mV | 150mV | 200mV |
| Efficiency | 80% | 82% | 84% | 84% | 86% | 86% |
| AC Input Voltage Range | 170-264VAC 47-63Hz / 240-370VDC | |||||
| Input Current | 2.5A / 230VAC | |||||
| AC Inrush Current | Cold-start current: 50A / 230VAC | |||||
| Leakage Current | <3.5mA / 240VAC | |||||
| Overload Protection | 115%-135%, output cut-off, automatic recovery | |||||
| Over Temperature Protection | >85°C, output cut-off, automatic recovery | |||||
| Waterproof Grade | IP67 | |||||
| Withstand Voltage | I/P-O/P:1.5KVAC 1min; I/P-FG:1.5KVAC 1min; O/P-FG:0.5KVAC 1min | |||||
| Start / Rise / Hold Time | 200ms / 100ms / 30ms | |||||
| Working Temperature & Humidity | -10°C~+60°C, 20%~90%RH | |||||

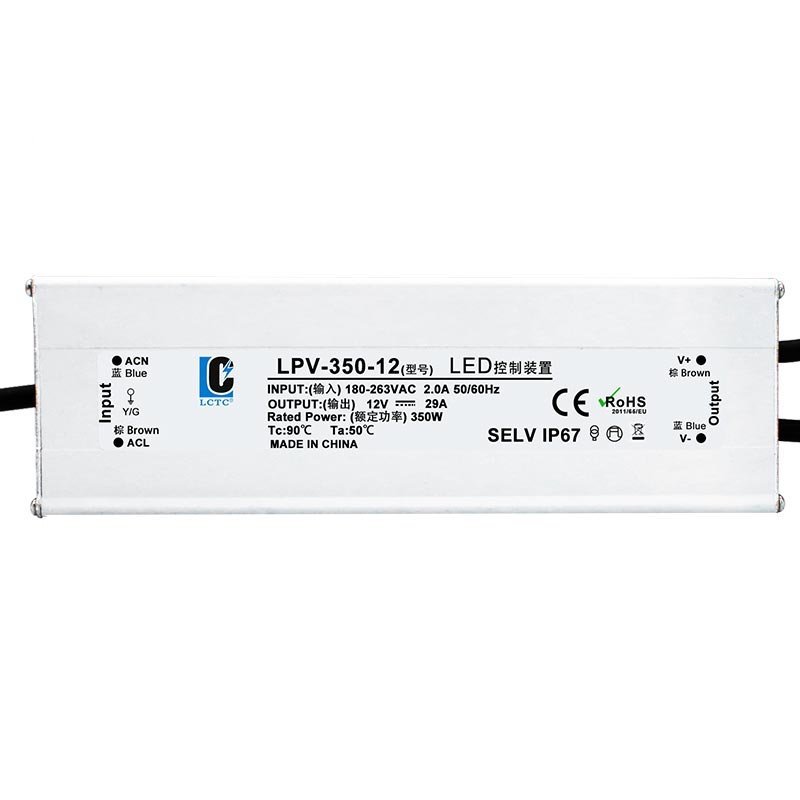

LPV-350 Learn more about this product.
Product Specifications | ||||
| Model Number | LPV-350-12 | LPV-350-15 | LPV-350-24 | LPV-350-36 |
| DC Output Voltage | 12V | 15V | 24V | 36V |
| DC Output Current | 29A | 23A | 14.5A | 9.7A |
| Rated Power | 350W | 350W | 350W | 350W |
| Ripple & Noise | <120mV | <120mV | <200mV | <240mV |
| Voltage Accuracy | ±5% | |||
| Load Regulation | ±2% | |||
| Line Regulation | ±1% | |||
| Setup/Rise/Hold Time | 2000ms,25ms,15ms(115VAC) / 2000ms,25ms,50ms(230VAC) | |||
| Input Voltage Range | 90~264VAC 47-63Hz 127~370VDC | |||
| Frequency Range | 47~63Hz | |||
| Efficiency (Typ.) | >87% | >88% | >88% | >89% |
| AC Current | 4.5A/110VAC, 2.7A/230VAC | |||
| Inrush Current | 220VAC:60A | |||
| Leakage Current | 1/P-FG:240VAC<2.5mA | |||
| Withstand Voltage | I/P-O/P:3KVAC, 1 Minute | |||
| Overload Protection | >105%~135%, Hiccup Mode, Auto Recovery | |||
| Overvoltage Protection | Output Overvoltage Protection, Auto Recovery | |||
| Operating Temperature & Humidity | -30°C~+70°C,20%~90%RH | |||
| Storage Temperature & Humidity | -40°C~+85°C,10%~95%RH | |||
| Insulation Resistance | I/P-O/P, I/P-FG, O/P-FG:500DC/100MΩ | |||
LPV-650 Learn more about this product.
Product Specifications | ||||
| Model Number | LPV-650-24 | LPV-650-36 | LPV-650-48 | LPV-650-60 |
| DC Output Voltage | 24V | 36V | 48V | 60V |
| DC Output Current | 25A | 18A | 13.5A | 10.8A |
| Output Power | 600W | 650W | 650W | 650W |
| Ripple & Noise | 200mVp-p | 220mVp-p | 240mVp-p | 240mVp-p |
| Voltage Accuracy | ±2.0% | ±1.5% | ±1.5% | ±1.5% |
| Line Regulation | ±0.5% | |||
| Load Regulation | ±0.5% | |||
| Setup/Rise/Hold Time | 500ms/50ms/24ms @ 230VAC | |||
| Input Voltage Range | 180~264VAC / 245~373VDC | |||
| Frequency Range | 47~63Hz | |||
| AC Input Current | 6.0A/230VAC | |||
| Efficiency (Typ.) | 91.50% | 93.00% | 92.50% | 94.00% |
| Inrush Current | 65A/230VAC | |||
| Leakage Current | <2mA/240VAC | |||
| Overload Protection | 95%~108% Current Limiting Protection | |||
| Overvoltage Protection | Isolation Mode, Auto Recovery After Fault Removal | |||
| Protection method: isolation mode | ||||
