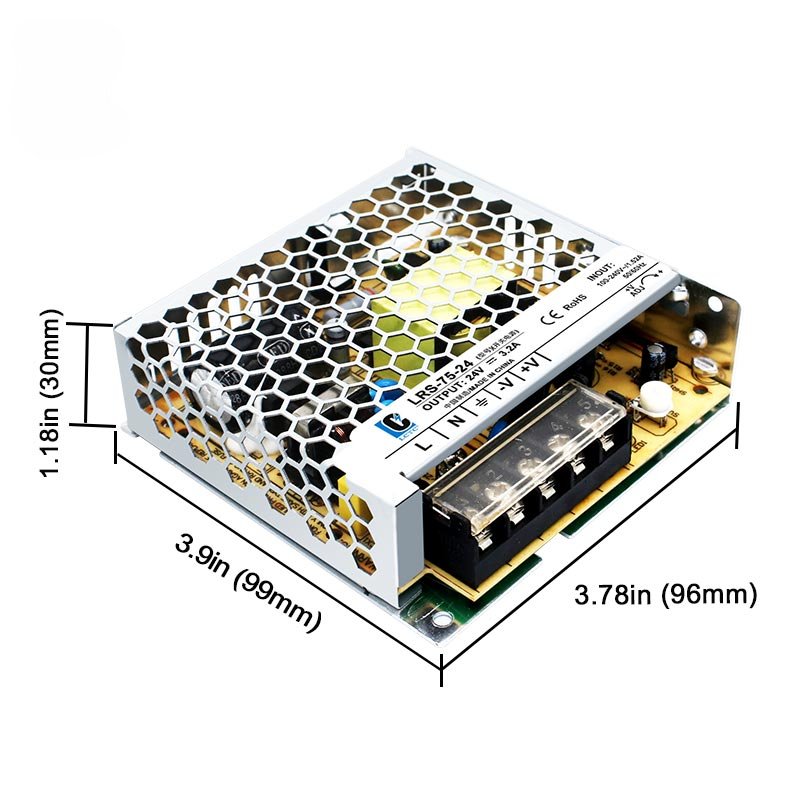

LRS-75 Enclosed Power Supply
- Features short-circuit, overload, and overvoltage protection.
- High resistance to shock and vibration.
- Greater stability during long-term operation.
- Operating temperature range: -40°C to +85°C.
- Cooled via natural air convection.
Product Overview & Applications:
The LSR series of enclosed power supplies is a high-performance, highly reliable power solution designed to power industrial automation, control systems, and various types of equipment. Featuring a wide input voltage range, the series adapts to diverse power environments, ensuring stable equipment operation under various conditions.
Additionally, the series offers a range of output power specifications to meet diverse application needs, making it an ideal power solution for the industrial sector.
Technical Parameters
Product Specifications | ||||
| Model Number | LRS-75-5 | LRS-75-12 | LRS-75-24 | LRS-75-48 |
| DC Output Voltage | 5V | 12V | 24V | 48V |
| DC Output Current | 12A | 6A | 3.2A | 1.6A |
| Rated Power | 60W | 72W | 76.8W | 76.8W |
| Ripple & Noise | 100mVp-p | 150mVp-p | 200mVp-p | 200mVp-p |
| Current Range | 0~12A | 0~6A | 0~3.2A | 0~1.6A |
| Voltage Adjustment Range | 4.5~5.5V | 10.2~13.8V | 21.6~28.8V | 43.2~52.8V |
| Voltage Accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±2.0% | ±1.0% | ±0.5% | ±0.5% |
| Setup Time / Rise Time | 500ms,30ms@230VAC; 1000ms,30ms@115VAC (Full Load) | |||
| Hold-up Time (Typ.) | 370ms@230VAC; 10ms@115VAC (Full Load) | |||
| Input Voltage Range | 85~264VAC / 120~370VDC | |||
| Frequency Range | 47~63Hz | |||
| Efficiency | 82% | 87% | 89% | 90% |
| Input Current | 1.5A/115VAC; 0.85A/230VAC | |||
| Leakage Current | <1.0mA/240VAC | |||
| Overload Protection | 110%~150%, Hiccup Mode, Auto Recovery | |||
| Overvoltage Protection | 5.7~6.8V | 14~17V | 28~33V | 55~65V |
| Overvoltage Protection Mode | Output Shutdown, Auto Recovery | |||
| Operating Temperature | -30°C~+70°C | |||
| Working Humidity | 20%~90%RH, Non-condensing | |||
| Storage Temperature & Humidity | -40°C~+85°C,10%~95%RH | |||
| Vibration Resistance | 10~500Hz, 5G, 10min/Cycle, XYZ Each 60min | |||
| Withstand Voltage | I/P-O/P:1.5KVAC; I/P-FG:1.5KVAC; O/P-FG:0.5KVAC | |||
| Insulation Resistance | 100MΩ, 500VDC, 25°C, 70%RH | |||
| EMC Emission | EN55032 Class A | |||
| EMC Immunity | EN61000-4-2 | |||
| Safety Standard | GB4943 | |||
