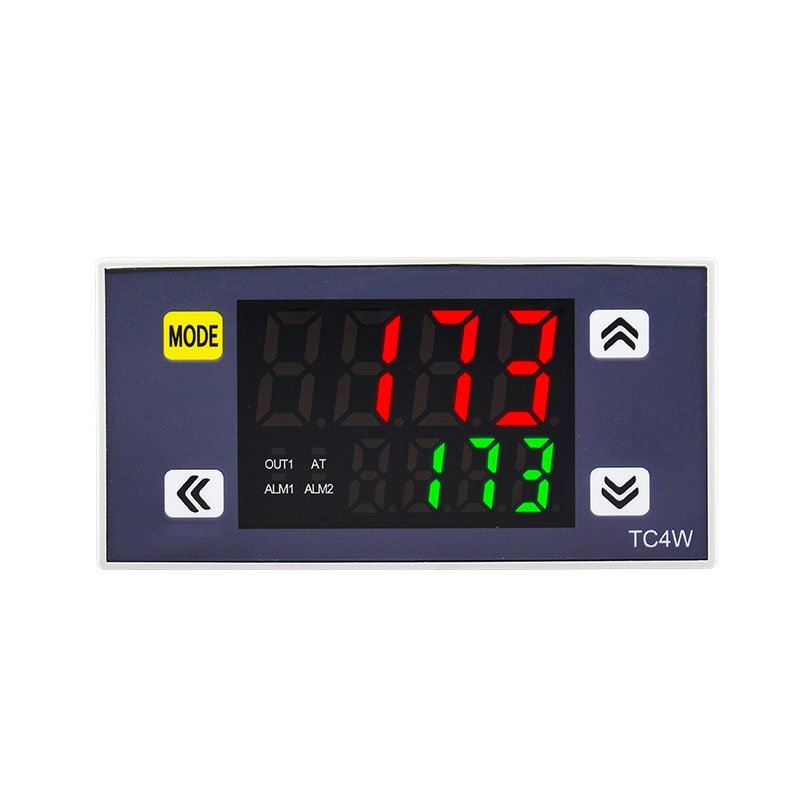

TC4W Temperature Controller
- TC/RTD and universal analog inputs.
- Accuracy: 0.2% F.S.
- Supports thermocouples and RTD sensors input
- Output type: Supports relays / SSR / analog signals
- Manual/automatic control switching.
Product Overview & Applications:
The LCTC temperature controller is designed for industrial automation systems, featuring PID control, universal sensor inputs, relay/SSR outputs, optional dual-alarm monitoring, and RS485 communication capabilities, providing you with a stable, flexible, and precise temperature regulation solution.
Technical Parameters
Product Specifications | |
| Model | TC4W |

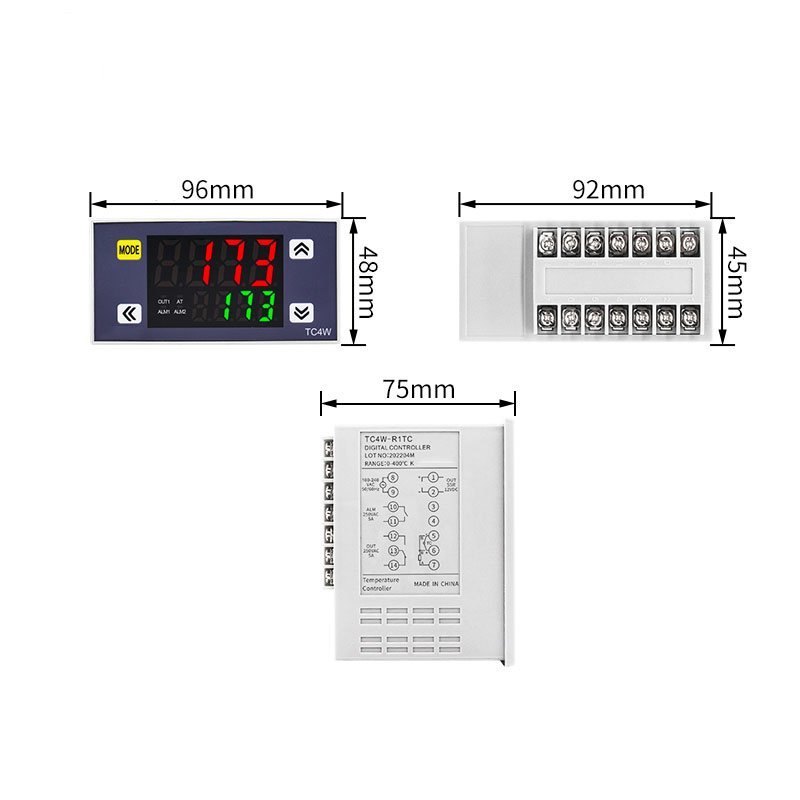

| Size | 96 × 48 mm |
| Input Type | Input Type: TC / RTD (K, J, E, T, S, PT100, Cu100, Cu50, selectable in menu) |
| Analog Input | Analog Signals: 0–5V, 0–10V, 1–5V, 4–20mA (customizable) |
| Output Typ | Output Type: SSR, Relay, 0–10V, 4–20mA (0–5V customizable) |

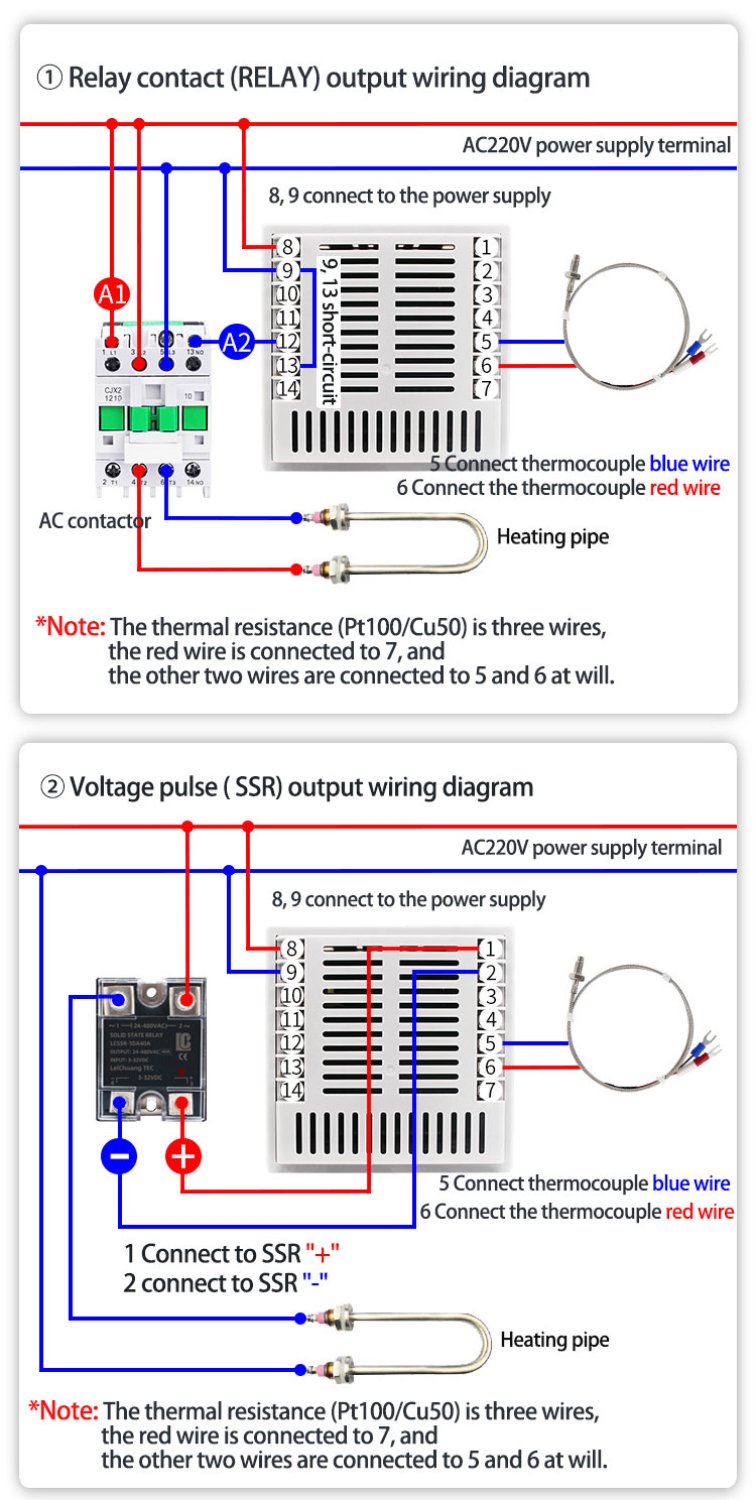

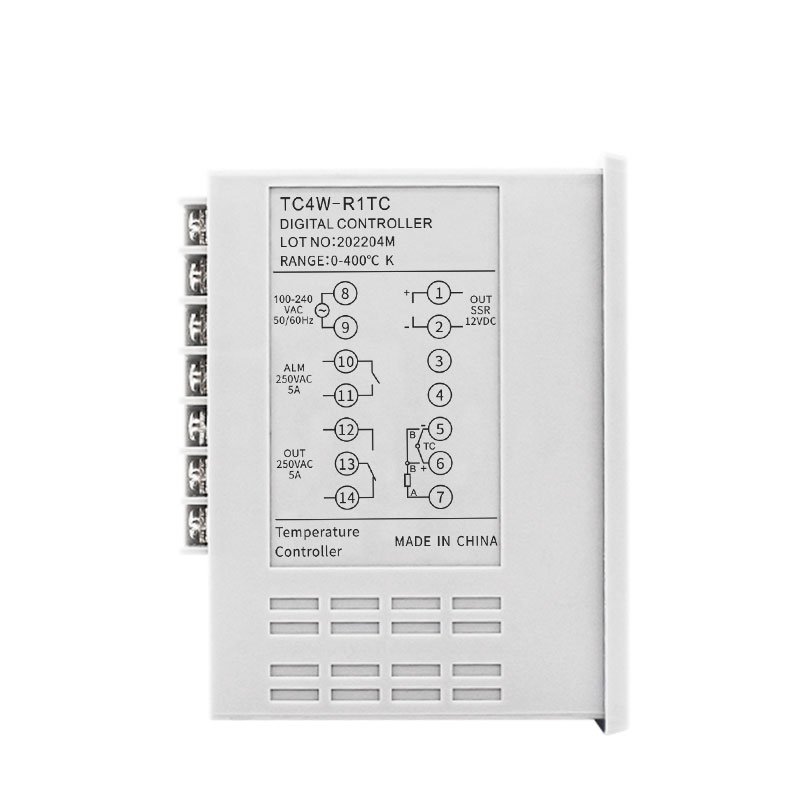

Wiring diagram
