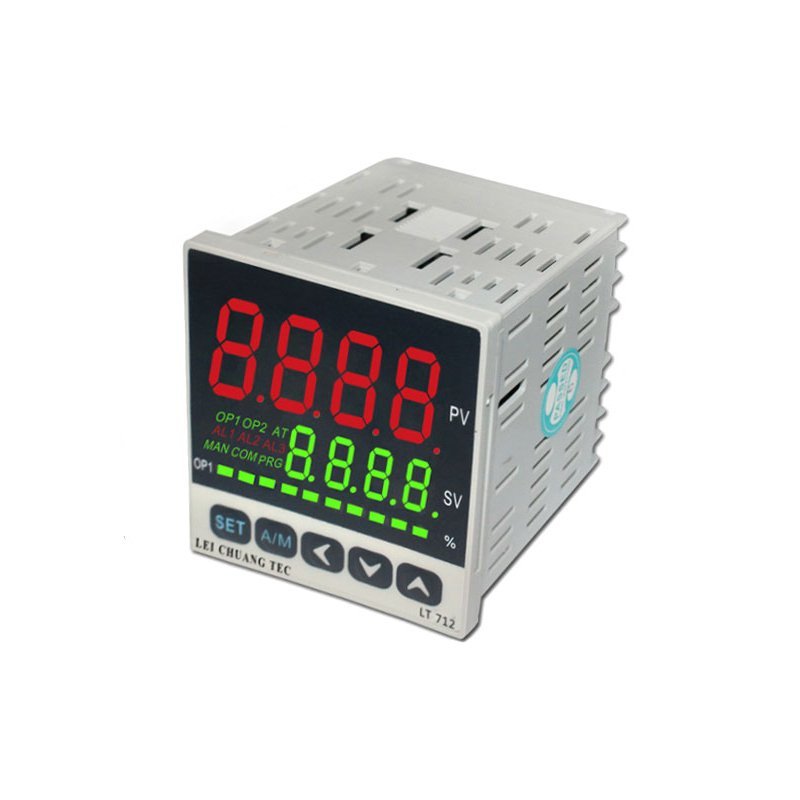

LT-712 Temperature Controller
- TC/RTD and universal analog inputs.
- Accuracy: 0.2% F.S.
- Supports thermocouples and RTD sensors input
- Output type: Supports relays / SSR / analog signals
- Manual/automatic control switching.
- Segmented LCD display with high-brightness backlight and wide viewing angle.
Product Overview & Applications:
The LCTC temperature controller is designed for industrial automation systems, featuring PID control, universal sensor inputs, relay/SSR outputs, optional dual-alarm monitoring, and RS485 communication capabilities, providing you with a stable, flexible, and precise temperature regulation solution.
Technical Parameters
Product Specifications | |
| Model Number | LT712 |

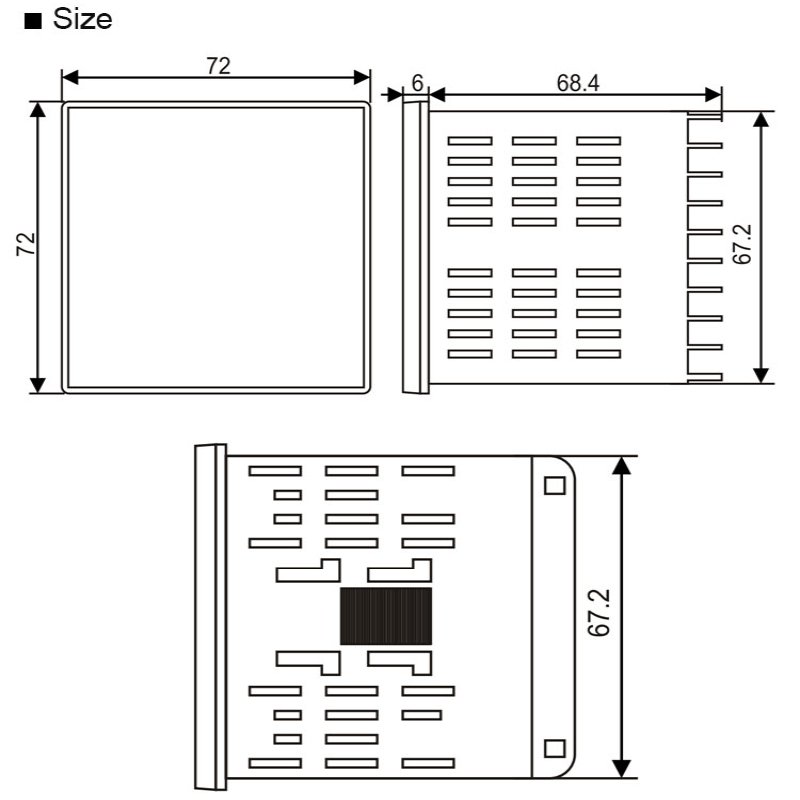

| size | 72 × 72 mm |
| Input Sensor Type | Thermocouple (TC): K, J, E, T, S |
| RTD: PT100, Cu100, Cu50 | |
| Sensor type can be switched in the menu | |
| Analog Signal Input | 0–5V, 0–10V, 1–5V, 4–20mA (Customizable) |
| Current Input | 4–20mA |
| Output Type | Relay |
| SSR Drive Output | |
| 0–10V Analog Output | |
| 4–20mA Analog Output | |
| Alarm Output | 1 Alarm / 2 Alarm (Optional) |
| Communication | RS485 (Optional: Yes / No) |

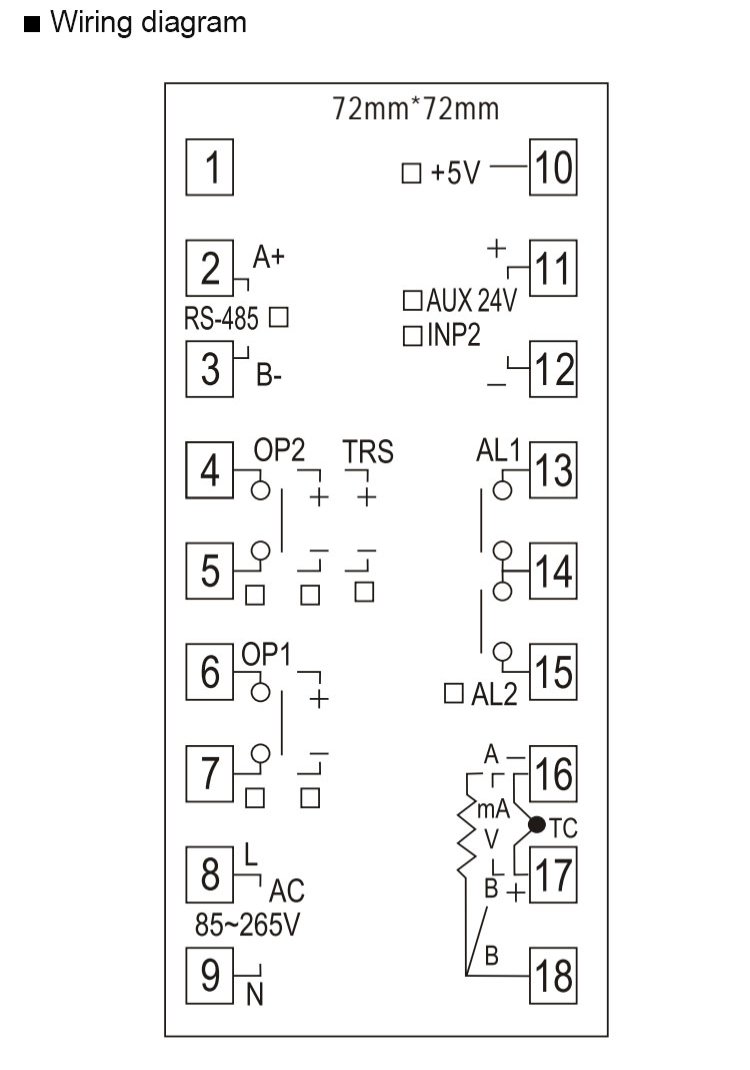

Wiring diagram
