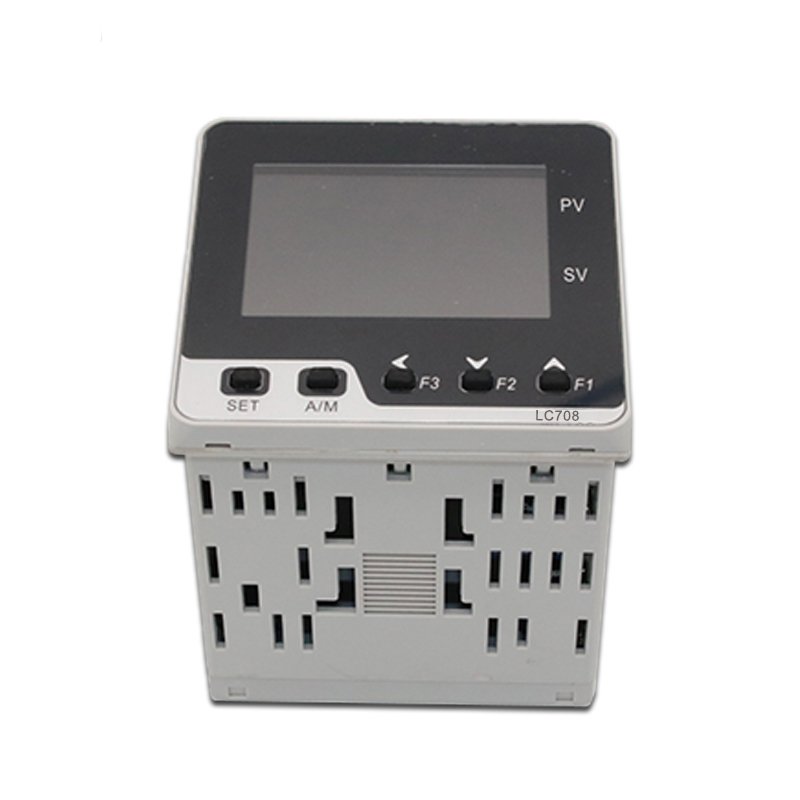

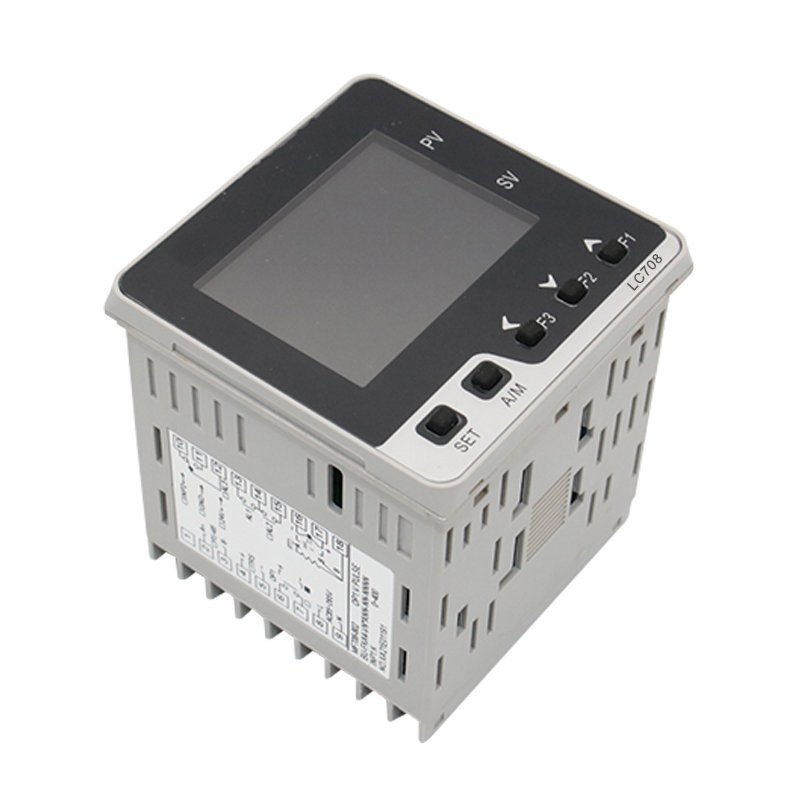

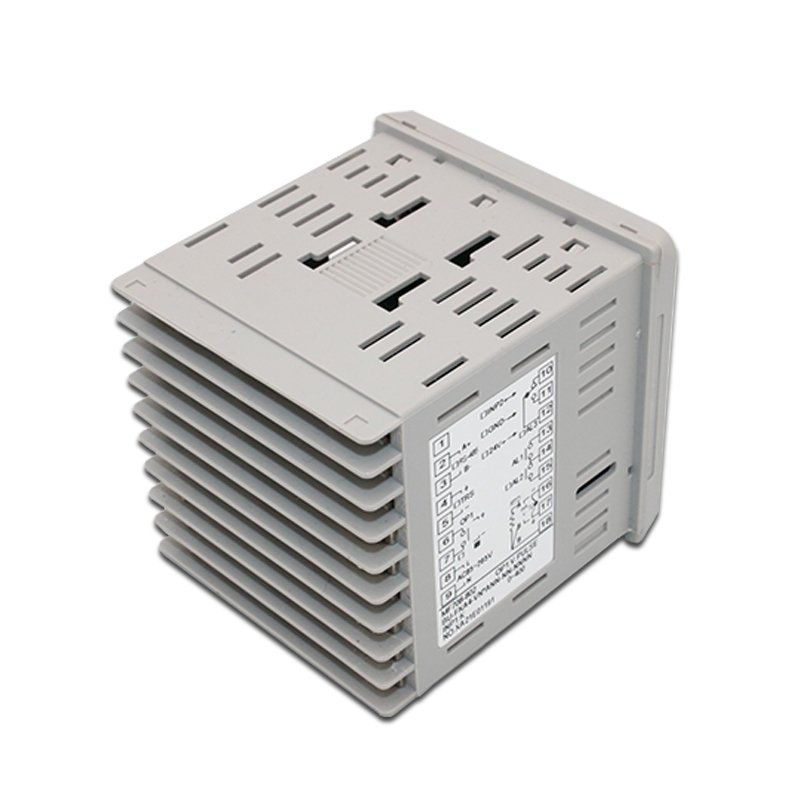

LC-708 Temperature Controller
- TC/RTD and universal analog inputs.
- Accuracy: 0.2% F.S.
- Supports thermocouples and RTD sensors input
- Output type: Supports relays / SSR / analog signals
- Manual/automatic control switching.
- Segmented LCD display with high-brightness backlight and wide viewing angle.
Product Overview & Applications:
The LCTC temperature controller is designed for industrial automation systems, featuring PID control, universal sensor inputs, relay/SSR outputs, optional dual-alarm monitoring, and RS485 communication capabilities, providing you with a stable, flexible, and precise temperature regulation solution.
Technical Parameters
Product Specifications | |

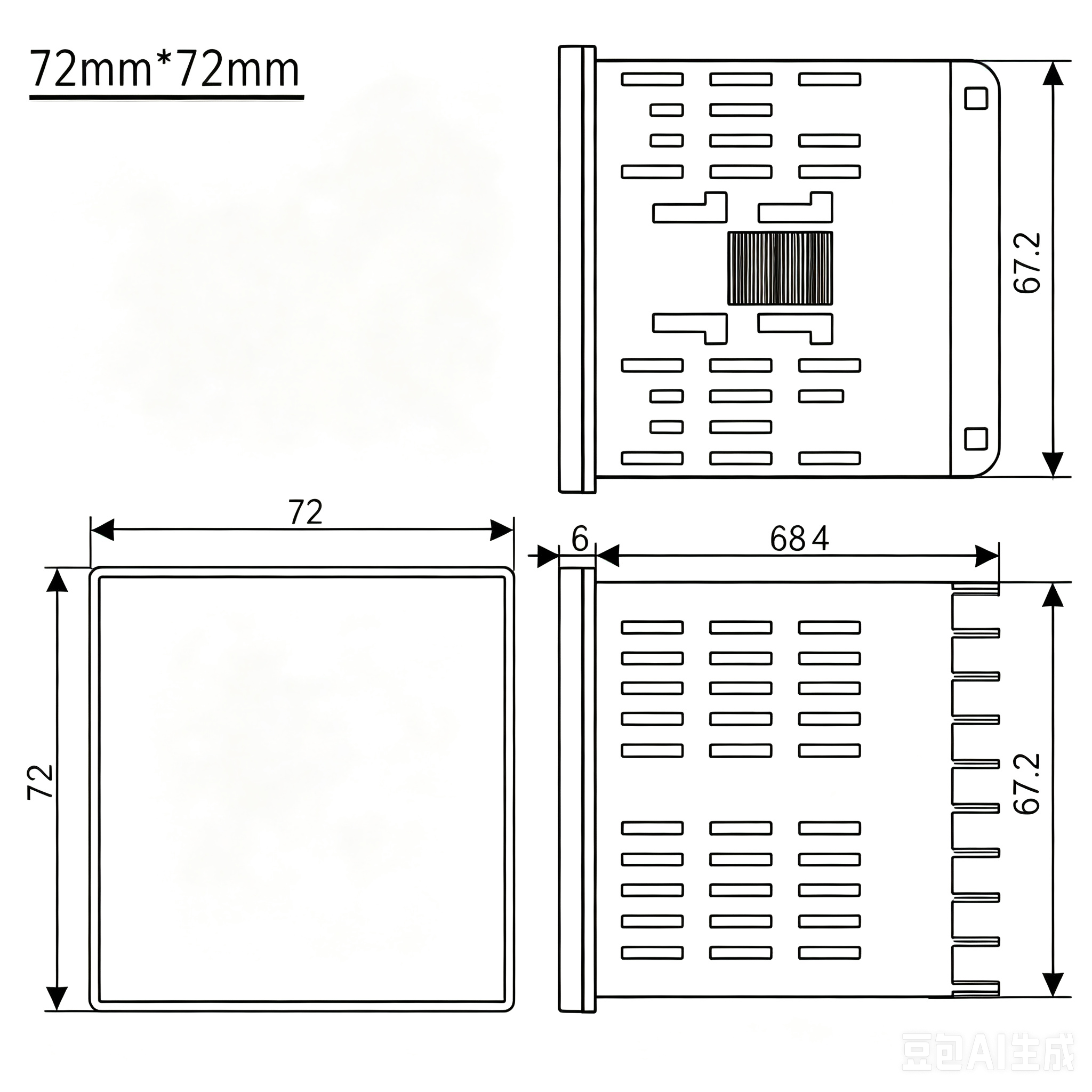

| Panel Size | LC708: 72 × 72 mm |
| Input Types | Thermocouple (TC), RTD (K, J, E, T, S, PT100, Cu100, Cu50) – Selectable via menu.Analog Input: 0–5V, 0–10V, 1–5V, 4–20mA (Customizable) |
| Output Types | SSR, Relay, 0–10V, 4–20mA (0–5V optional) |
| Communication | RS-485 Modbus (Optional upon request) |
| Power Supply | 85–265 VAC, 50/60 Hz or 24 VDC |
| Control Accuracy | ±0.5% F.S. |
| Control Mode | PID Control (with Auto-Tuning), Manual Tuning, ON/OFF Control |
| Sampling Period | 0.5 s |
| Operating Temperature | 0–50°C (Non-condensing) |
| Operating Humidity | <85% RH |
| Alarm Functions | High Limit Alarm, Low Limit Alarm, High & Low Limit Alarm, High Deviation Alarm, Low Deviation Alarm, Deviation Alarm (User Configurable) |

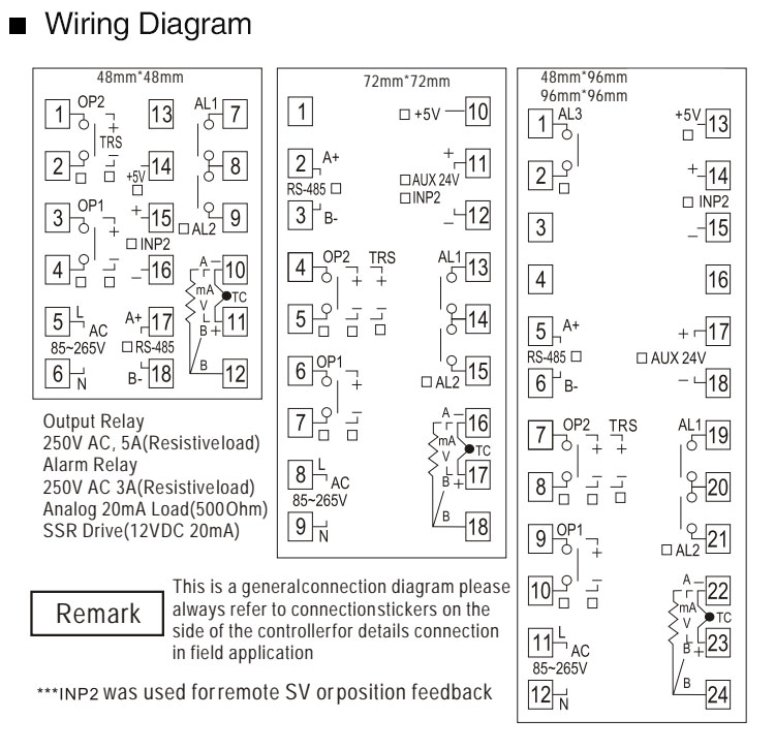

Wiring diagram
