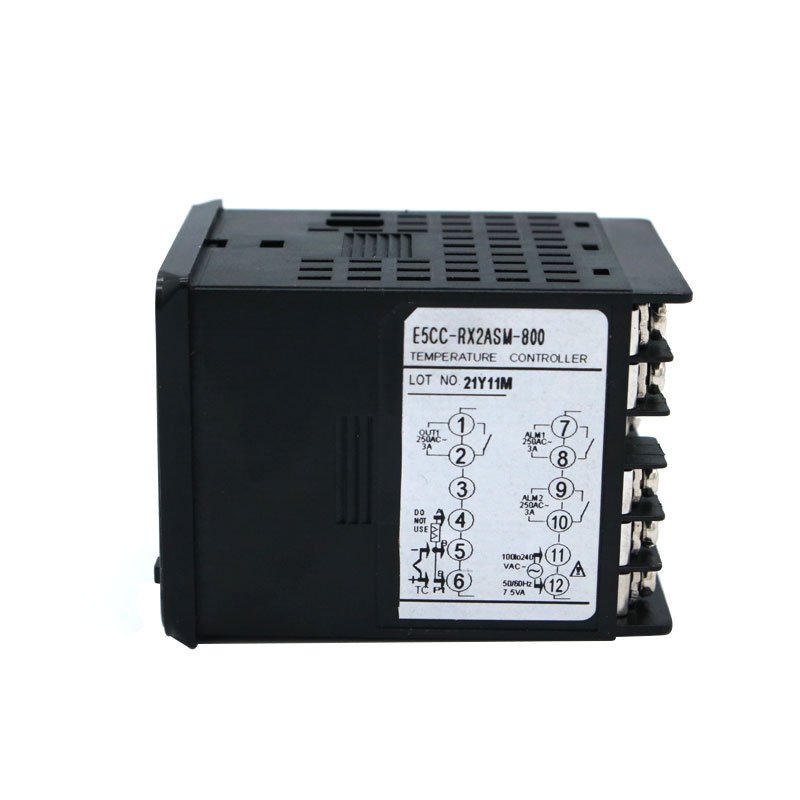

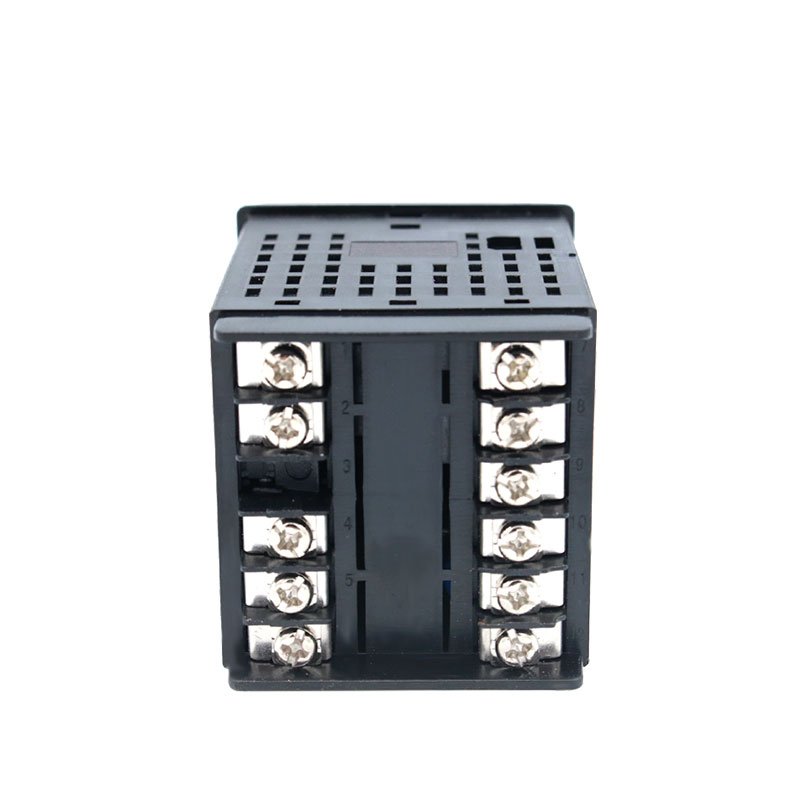

E5CC Temperature Controller
- TC/RTD and universal analog inputs.
- Accuracy: 0.2% F.S.
- Supports thermocouples and RTD sensors input.
- Output type: Supports relays / SSR / analog signals.
- Manual/automatic control switching.

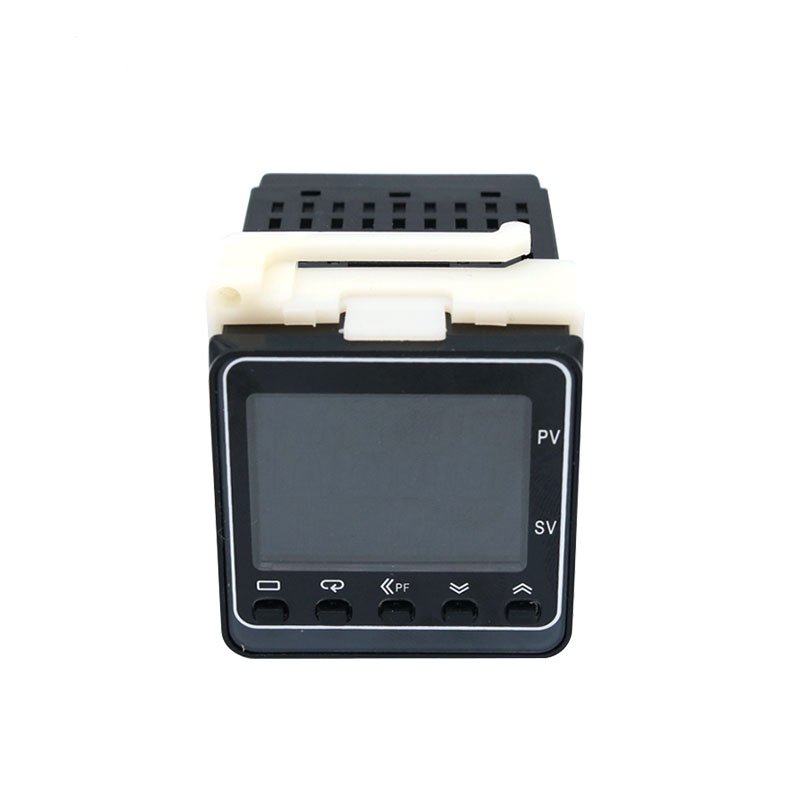

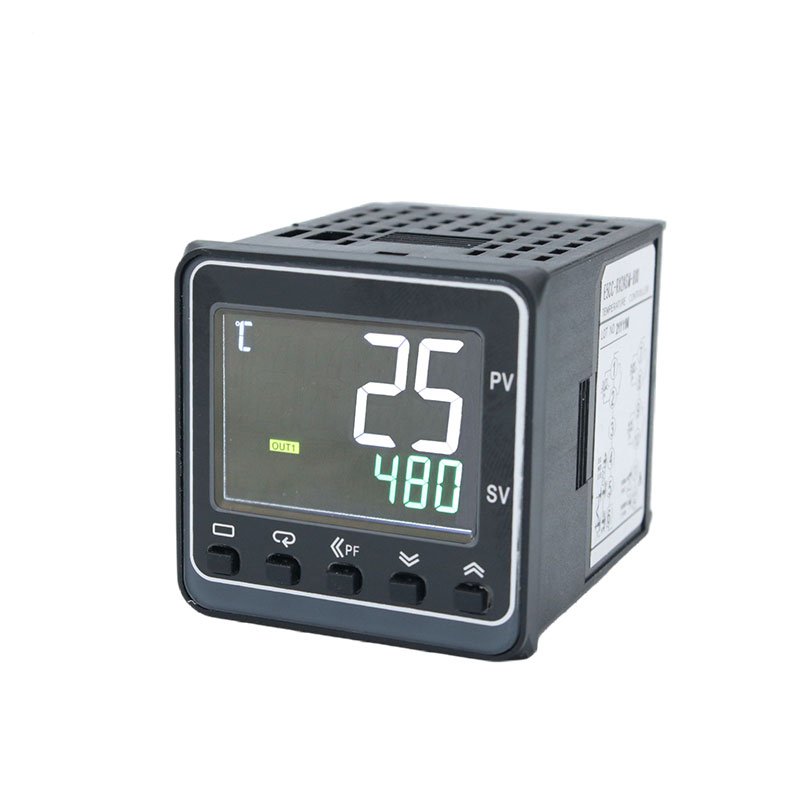

- Segmented LCD display with high-brightness backlight and wide viewing angle.
Product Overview & Applications:
The LCTC temperature controller is designed for industrial automation systems, featuring PID control, universal sensor inputs, relay/SSR outputs, optional dual-alarm monitoring, and RS485 communication capabilities, providing you with a stable, flexible, and precise temperature regulation solution.
Technical Parameters
Product Specifications | |
| Model | E5CC |

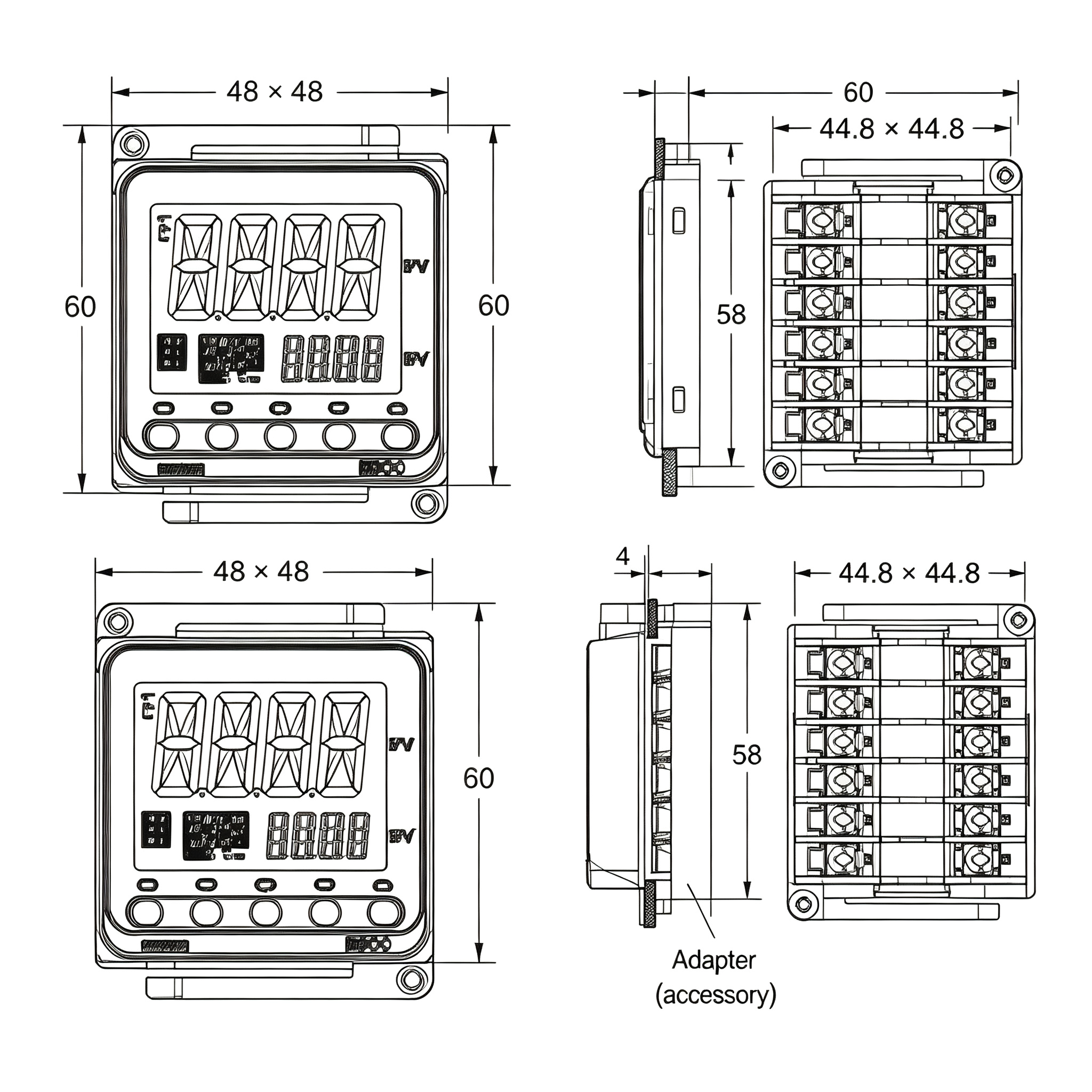

| Size | 48 × 48 mm |
| Power Supply Voltage | AC100–240V, 50/60Hz |
| Operating Voltage Range | 85%–110% of rated power supply voltage |
| Power Consumption | Max. 5.2VA (AC100–240V); Max. 3.1VA (AC24V); Max. 1.6W (DC24V) |
| Sensor Input | Thermocouple: K, E, J; RTD (Platinum Resistance Thermometer): PT100 |
| Input Impedance | Current Input: ≤150Ω; Voltage Input: ≥1MΩ |
| Control Method | ON/OFF Control or PID Control (2 Degrees of Freedom, Auto-tuning) |
| Relay Output | SPST-NO, AC250V, 3A (Resistive Load); Electrical Life: 100,000 Operations; Minimum Usable Load: 5V, 10mA |
| SSR Drive Output | DC12V ±20% (PNP); Maximum Load Current: 21mA; Short-circuit Protection |
| Number of Output Points | 2 (Varies by Model) |
| External Contact Input | Contact Input: ON ≤1kΩ, OFF ≥100kΩ; Non-contact Input: ON ≤1.5V Residual Voltage, OFF ≤0.1mA Leakage Current |
| Contact Current | Approx. 7mA per Contact |
| Setting Method | Front Panel Buttons |
