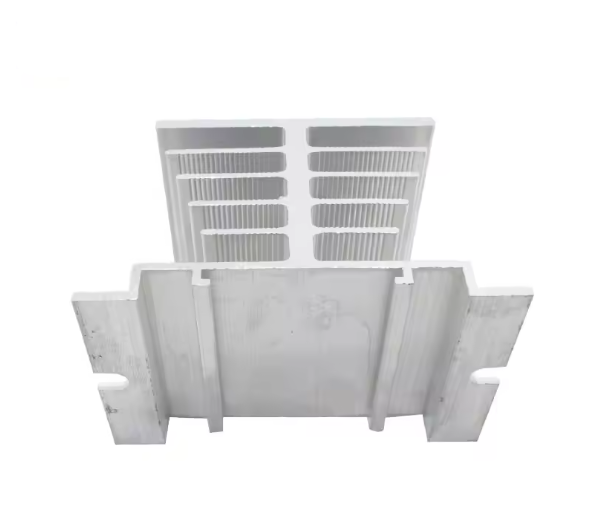

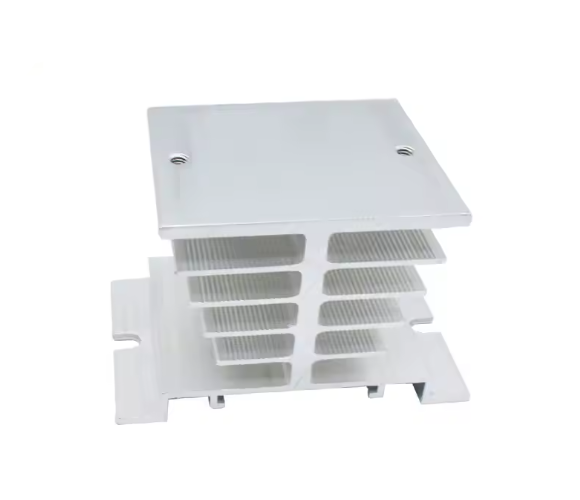

I-50 Heat Sink
- Offers customized heat dissipation solutions.
- Measures 80x50x50mm and weighs only 100g.
- Utilizes a high-efficiency heat dissipation design.
- Features an epoxy resin protective design for enhanced durability.
- Supports solid-state relay (SSR) currents ranging from 10A to 40A.
Product Overview & Applications:
The heat sink accelerates the heat dissipation speed by increasing the heat transfer surface area and promoting air convection, to prevent overheating and maintain stability.
Most of our SSR heat sinks are made from aluminum, in real applications, Aluminum transfers heat efficiently to pull heat away from the SSR pretty quickly. At the same time, the lighter weight of aluminum makes it easier to install, especially when you’re working inside a control panel. Another reason is cost, compared to materials like copper, aluminum gives you solid performance without driving up the price too much.
Technical Parameters
Product Specifications | ||
| Model | I-50-A | I-50-B |
| Material | Aluminum | |
| Temper Designation | O-H112 | |
| Application | Heat Sink | |
| Shape | Square | |
| Alloy Classification | Non-alloy | |
| Compatible SSR Current | 10–25 A | 40A |
| Brand | LCTC | |

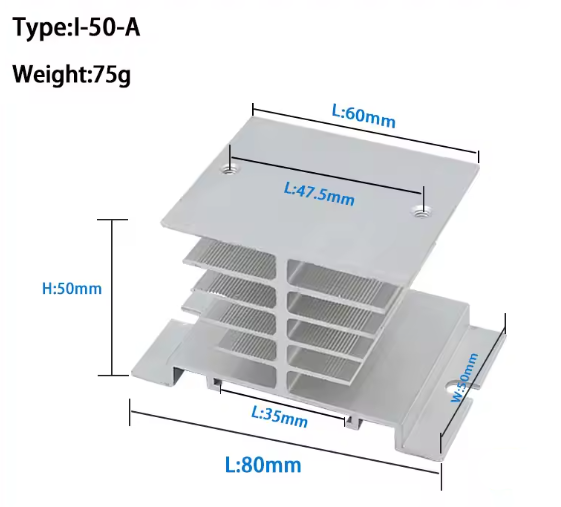

| Dimensions | 80 × 60 × 50 mm (L × W × H) | |
| Net Weight | 80g | 100 g |
