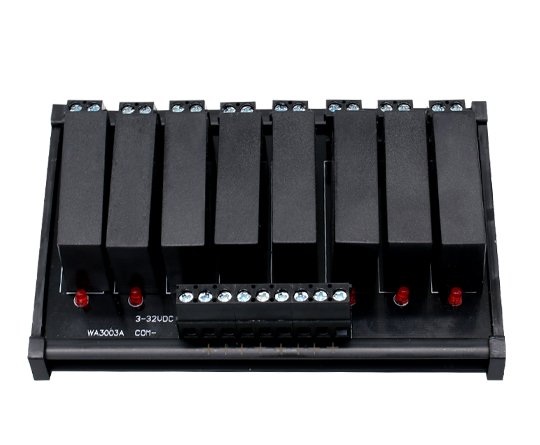

CN/CP 8 Channels Solid State Relay Module
- No mechanical wear, offers a longer service life.
- Customizable SSR relays to meet diverse application needs.
- High current carrying capacity, easily supports 5A current.
- Tolerates high-temperature environments up to 105°C.
- Semiconductor-controlled for noise-free switching.
- Detachable, can be used with a 1.37in (35mm) guide rail.
Product Overview & Applications:
Solid State Relay (SSR) products utilize SCRs or MOSFETs to achieve precise and rapid control over loads. The control circuitry is optically coupled and isolated from the load, offering high dielectric strength to provide protective isolation for upstream control components.
The DIN Rail Mounted Slim Relay SSR Solid State Relay is an essential component for various industrial and commercial applications. With its robust design and reliable performance, this SSR relay dc ensures seamless control of DC to AC systems.
Solid-state relays have gained widespread adoption and application across various fields, including hazardous and explosion-proof environments, lighting control systems, electromechanical automation control, and medical equipment.
Model Description:
SSR-0口 – 5DA -C口 (DC controlAC)
0口: 1,2,4,6,8 Channels
C口: CP:Control terminal common positive / CN:Control terminal common negative
SSR – 0口 – 5DD – C口 (DC control DC)
0口: 1,2,4,6,8 Channels
C口: CP:Control terminal common positive / CN:Control terminal common negative
Technical Parameters
Product Specifications | ||

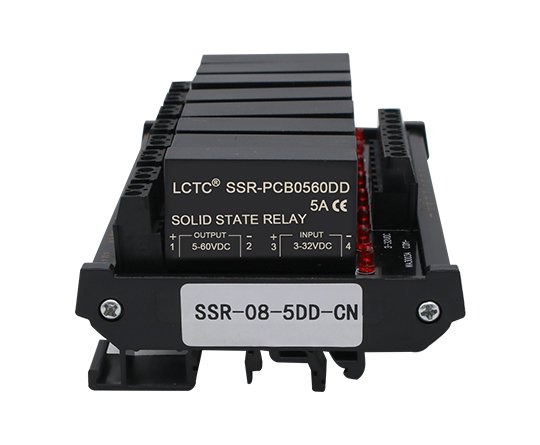

| Model: | SSR-08-5DA-CN | SSR-08-5DD-CN |
| Control model： | DC Control AC | DC Control DC |
| Load Current： | 5A | |
| Load Voltage： | 24-480VAC | 5-60VDC |
| Control Voltage： | 3-32VDC | |
| Control Current： | 5-25mA DC | |
| Turn-On Voltage： | ≤1.5V | |
| Leakage Current (OFF State)： | ≤2mA | |
| Switching Time： | ≤10mS | |
| Dielectric Strength： | 2500VAC | |
| Insulation Resistance： | 1000MΩ | |
| Operating Temperature： | -30°C ~ +75°C | |
| Mounting Method： | DIN Rail Mounting | |
| Status Indicator： | LED Indicator | |
| CP:common positive CN:common negative | ||

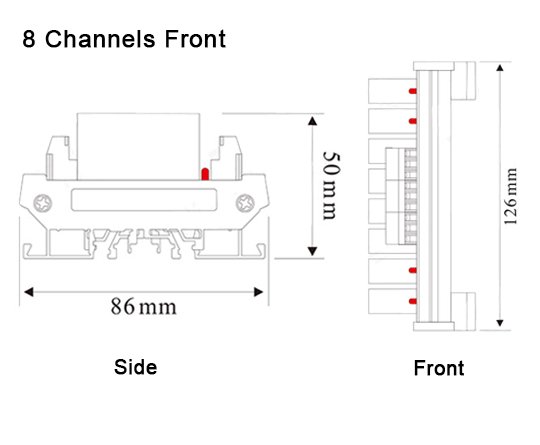

Product Dimensions
