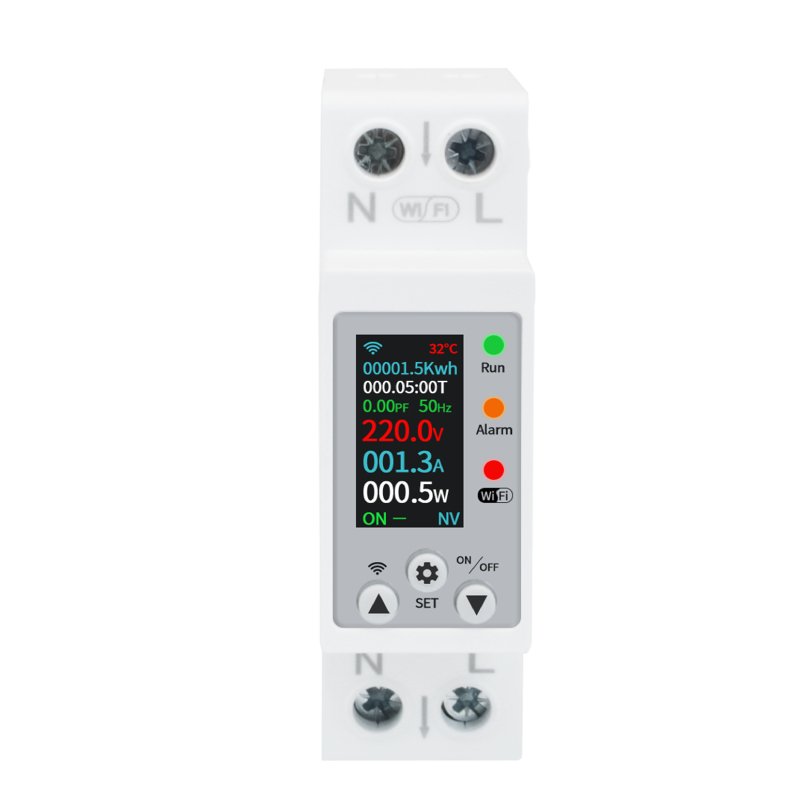

LWS-303WF Smart Circuit Breaker
- Real-Time Voltage & Current Display
- Voltage Fluctuation Protection
- Over/Under Voltage Auto Reset
- DIN Rail Mount
- Consecutive Overcurrent Protection
Product Overview & Applications:
View Voltage and CurrentReadings at Any Time
Protects your system from voltage fluctuations
Technical Parameters
Product Specifications | |
| Rated Voltage | AC 220/110 V |
| Operating Voltage Range | AV 80–300 V |
| Frequency | 50/60 Hz |
| Power Range | 0.99999 kWh |
| Time Range | 0–999 Days |
| Power Factor | 0–1.0 PF |
| Temperature Setting Range | -40–150 °C |
| Overvoltage Setting Range | 130–300 V |
| Undervoltage Setting Range | 75–210 V |
| Overcurrent Setting Range | 1–63 A |
| Overload Setting Range | 1–15 kW |
| Rated Insulation Voltage | 400 V |
| Output Contacts | 1 NO (Normally Open) |
| Electrical Life | 10,000 Switching Cycles |
| Protection Class | IP30 |
| Altitude | ≤ 2000 m |
| Humidity | ≤ 50 % at 40 °C (non-condensing) |
