Product Overview & Applications:
Technical Parameters
| Power Supply | Output Type | Contact Type | 1 mm Model | 2 mm Model |
| DC 6~36V | NPN | NO | ALJ10A3‑1‑Z/N1 | ALJ10A3‑2‑Z/N1 |
| NC | ALJ10A3‑1‑Z/N2 | ALJ10A3‑2‑Z/N2 | ||
| NO+NC | — | — | ||
| PNP | NO | ALJ10A3‑1‑Z/P1 | ALJ10A3‑2‑Z/P1 | |
| NC | ALJ10A3‑1‑Z/P2 | ALJ10A3‑2‑Z/P2 | ||
| NO+NC | — | — | ||
| 2 wire | NO | ALJ10A3‑1‑Z/D1 | ALJ10A3‑2‑Z/D1 | |
| NC | ALJ10A3‑1‑Z/D2 | ALJ10A3‑2‑Z/D2 | ||
| AC 90~250V | 2 wire | NO | ALJ10A3‑1‑J/A1 | ALJ10A3‑2‑J/A1 |
| NC | ALJ10A3‑1‑J/A2 | ALJ10A3‑2‑J/A2 | ||
| NO+NC | — | — |

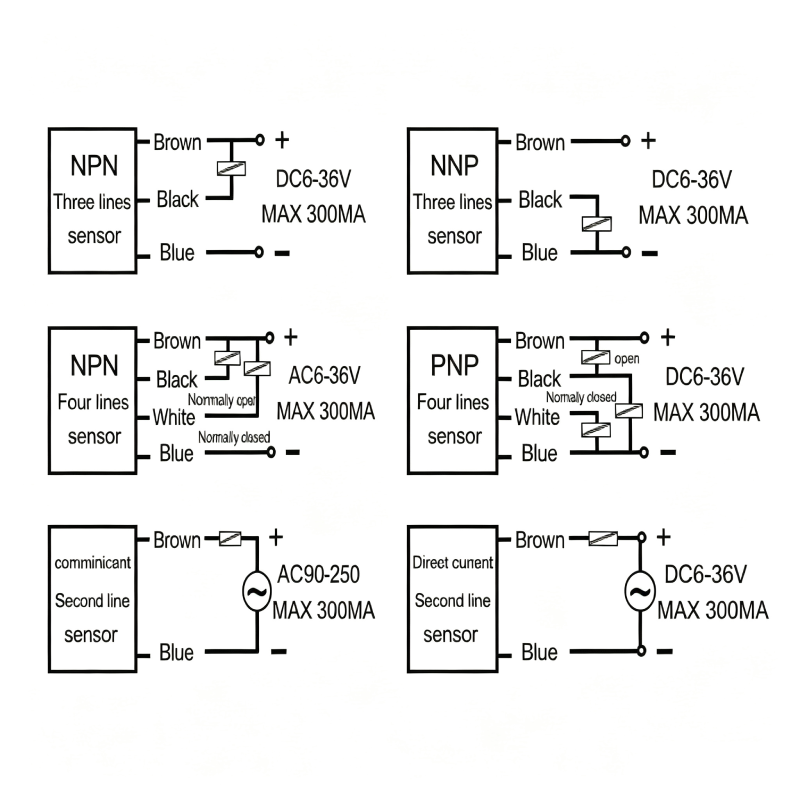

wiring diagram
