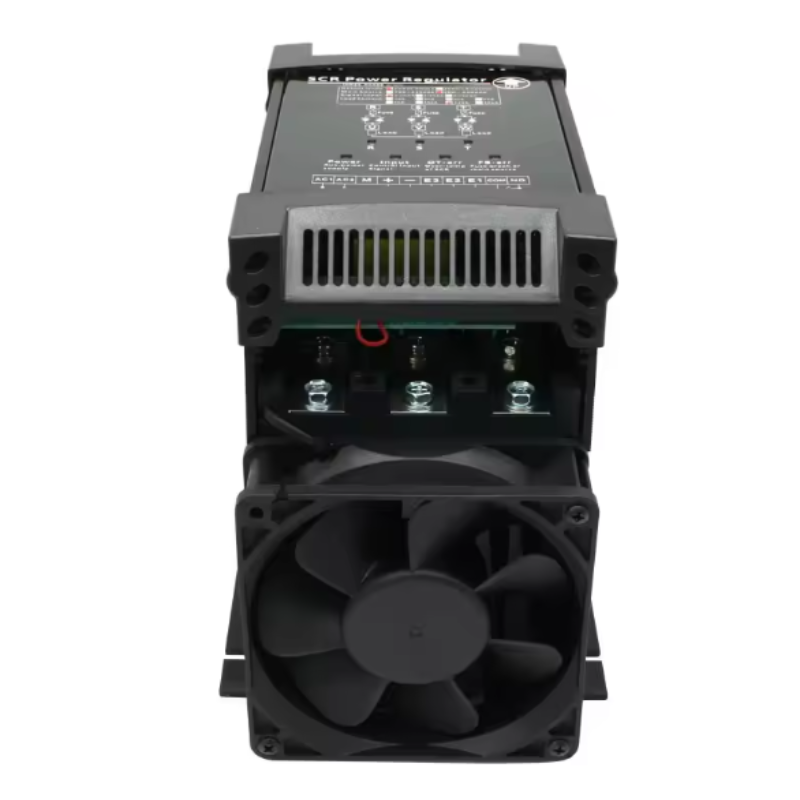

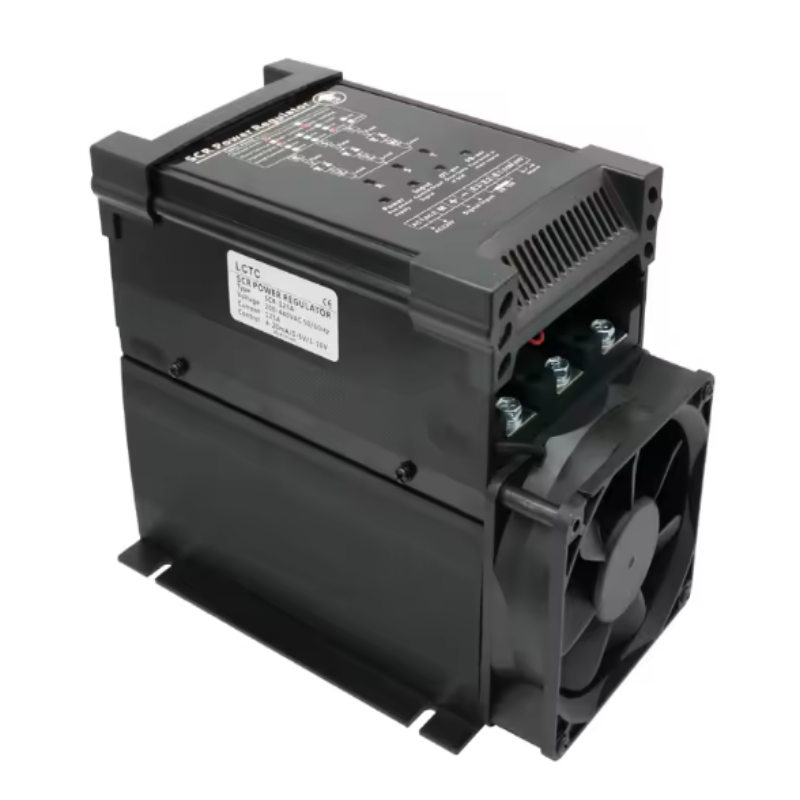

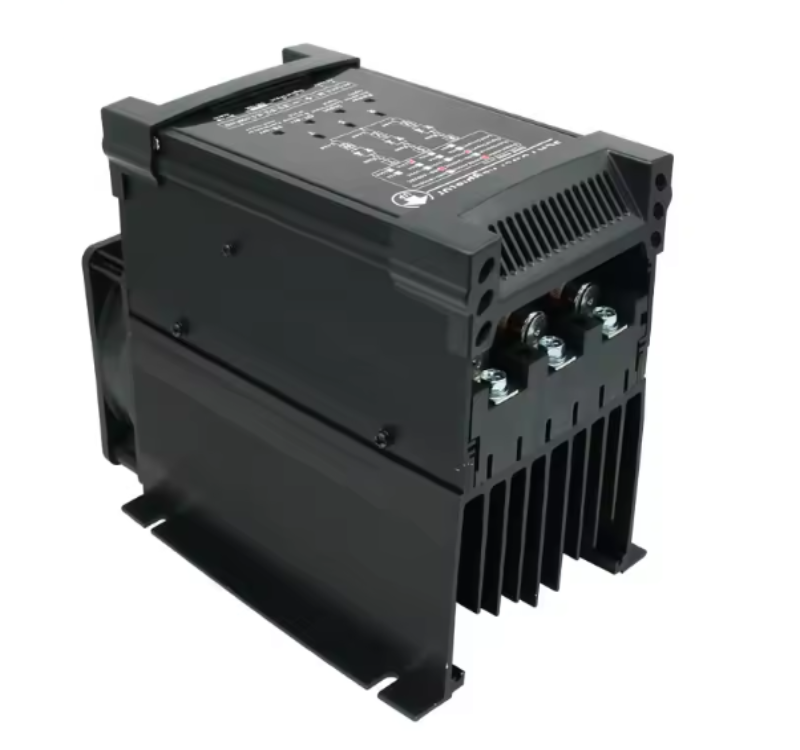

SCR POWER REGULATOR
- 12-bit high-precision AD conversion.
- Output modes: ON/OFF, Constant Voltage, Constant Current.
- Phase control trigger.
- Soft start/stop (0–120s).
- Multi-protection with built-in fast fuse.
Product Overview & Applications:
Current calculation method:
SCR Current (A) = 1.2 × (Load (kW) × 1000 ÷ Line Voltage (V))
Technical Parameters

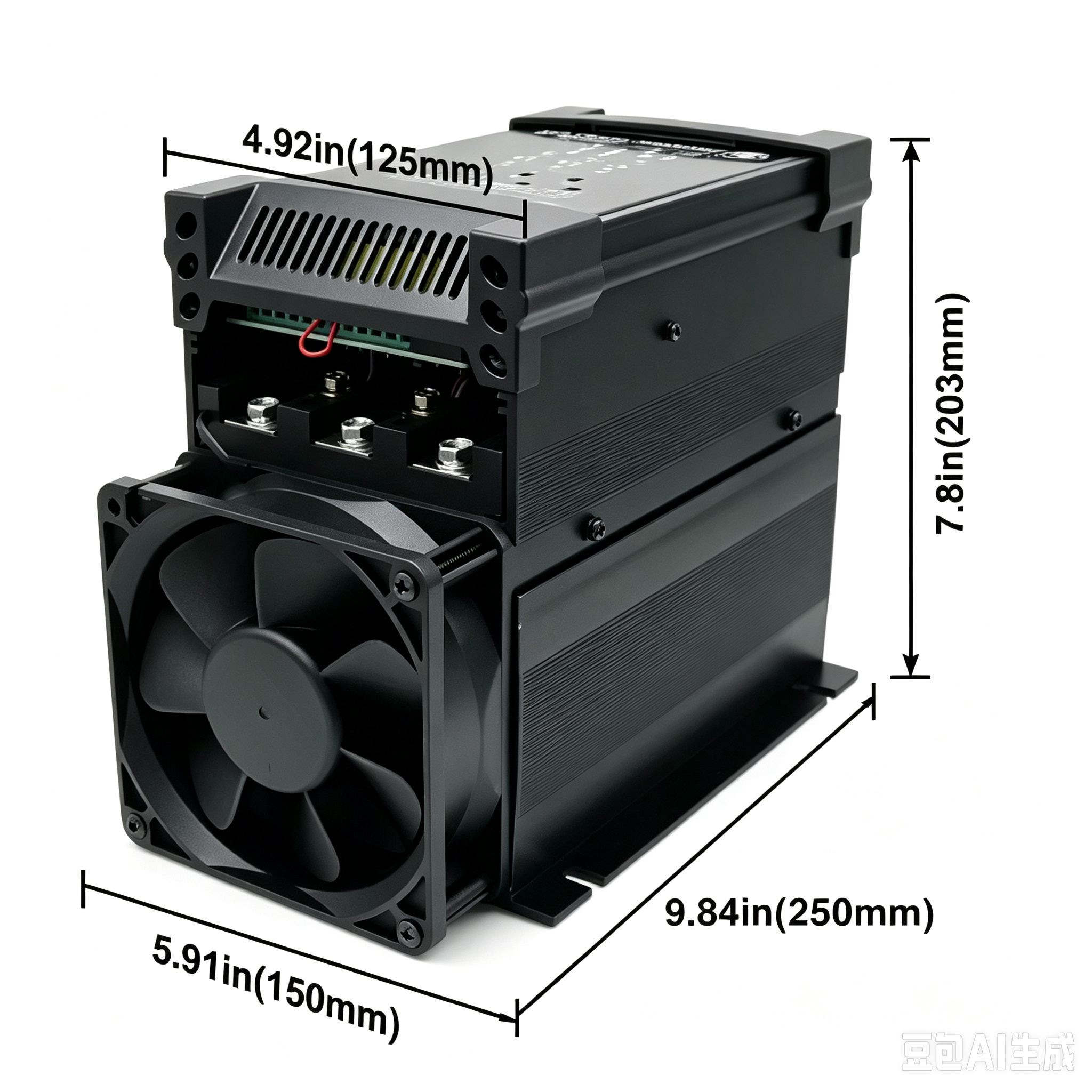

| Model No. | Rated Current (A) | Dimensions (L × W × H, mm) | Cooling Method |
| SCR-3P-40A | 40 | 255 × 140 × 195 | Air Cooling |
| SCR-3P-75A | 75 | 255 × 140 × 195 | Air Cooling |
| SCR-3P-90A | 90 | 255 × 140 × 195 | Air Cooling |
| SCR-3P-120A | 120 | 255 × 140 × 195 | Air Cooling |

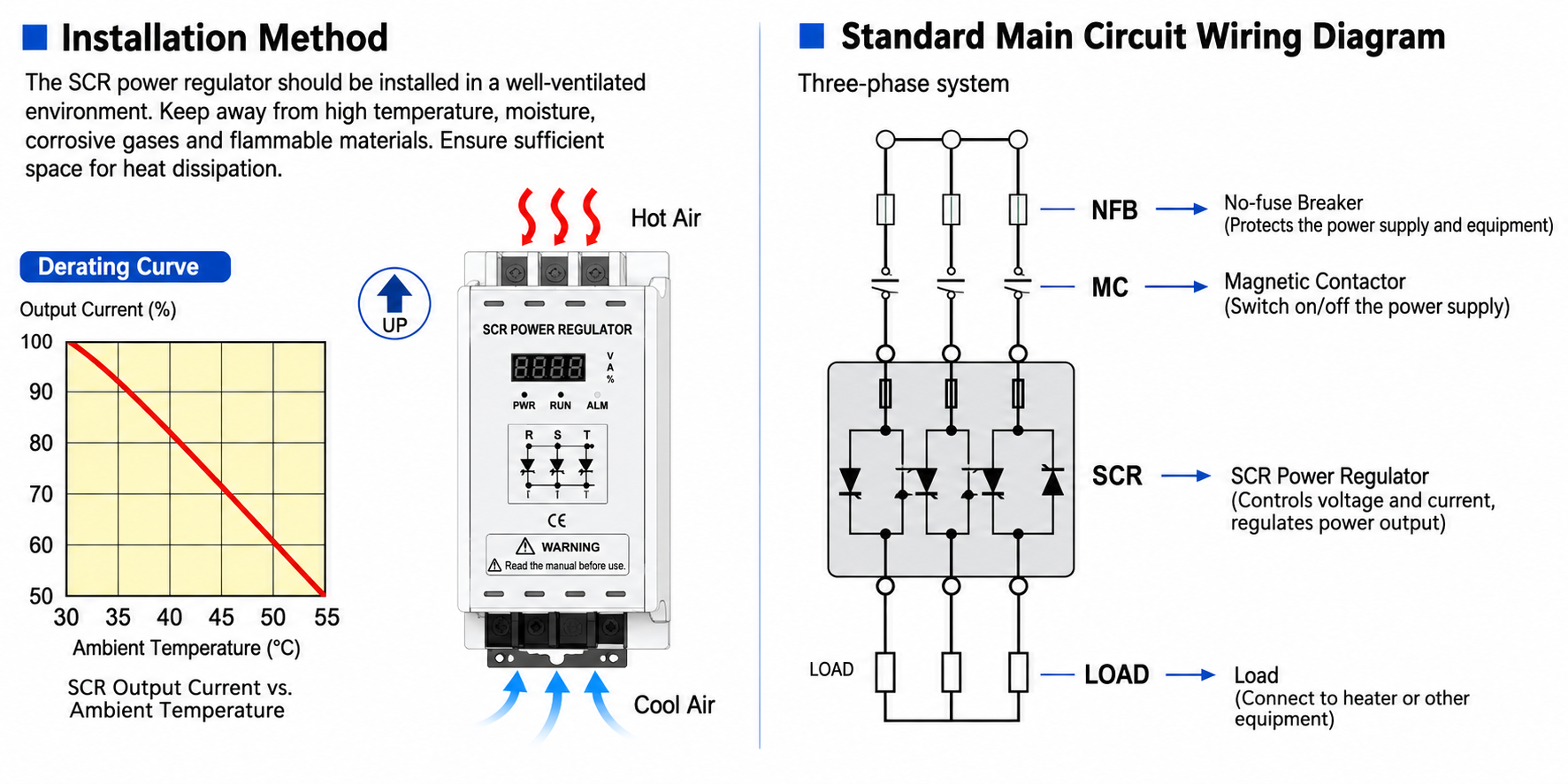

Installation & Power Wiring
Download
