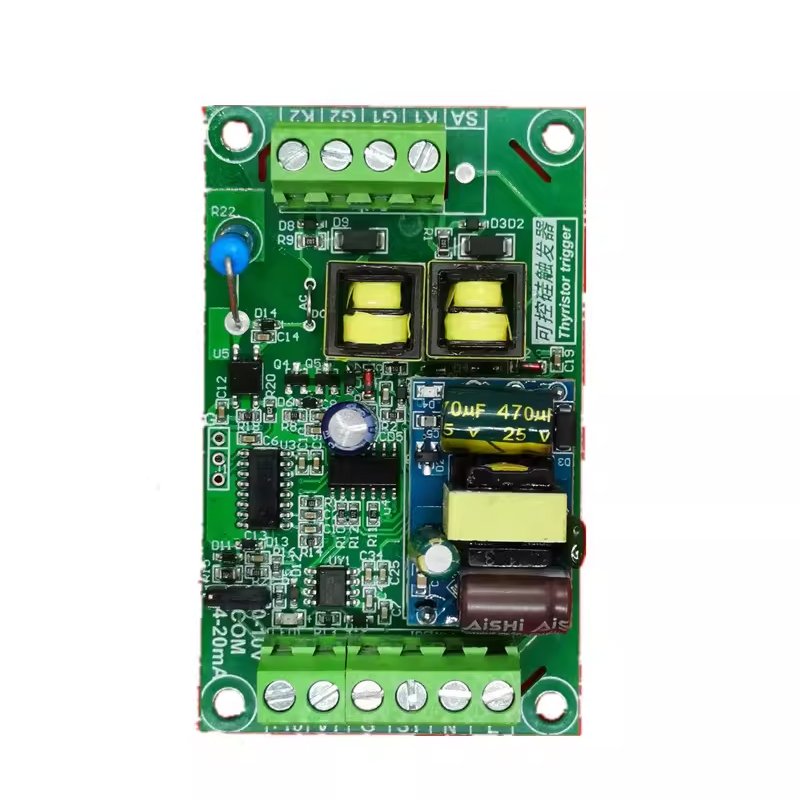

Single-Phase Thyristor Trigger Board
- 32-bit ARM Digital Controller.
- 500A High Trigger Capacity.
- 5000V Isolation Protection.
- 4–20mA / 0–10V Linear Control.
- Professional EMC Design for Stable Performance.
Product Overview & Applications:
Technical Parameters

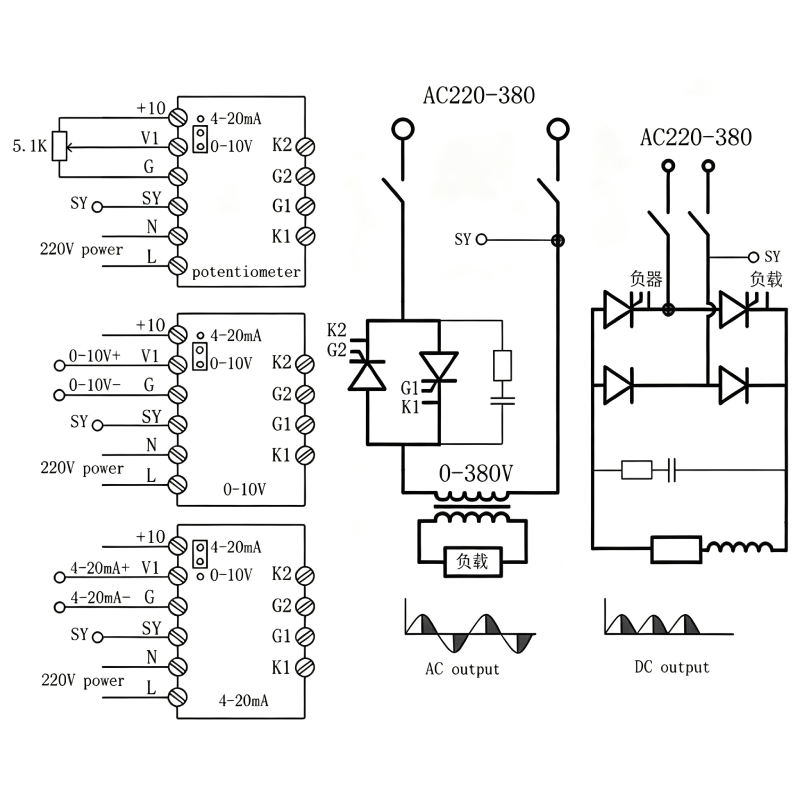

| Terminal | Function | Explain |
| +10 | +10V Voltage Output | For external 10KΩ potentiometer |
| V1 | Signal Input | 0-10V / 4-20mA Input Positive (Internal Jumper Selection) |
| G | Signal Input | 0-10V / 4-20mA Input Negative |
| SY | Synchronization signal | Flip-flop synchronization signal |
| N | Neutral (220VAC) | Control power supply 220VAC |
| L | Line (220VAC) | Control power supply 220VAC |
| K2 | Thyristor K2 Pole | Thyristor input side (must be connected correctly) |
| G2 | Thyristor G2 Pole | Applicable frequency: 35–80Hz |
| G1 | Thyristor G1 Pole | Thyristor output side |
| K1 | Thyristor K1 Pole | Thyristor output side |
