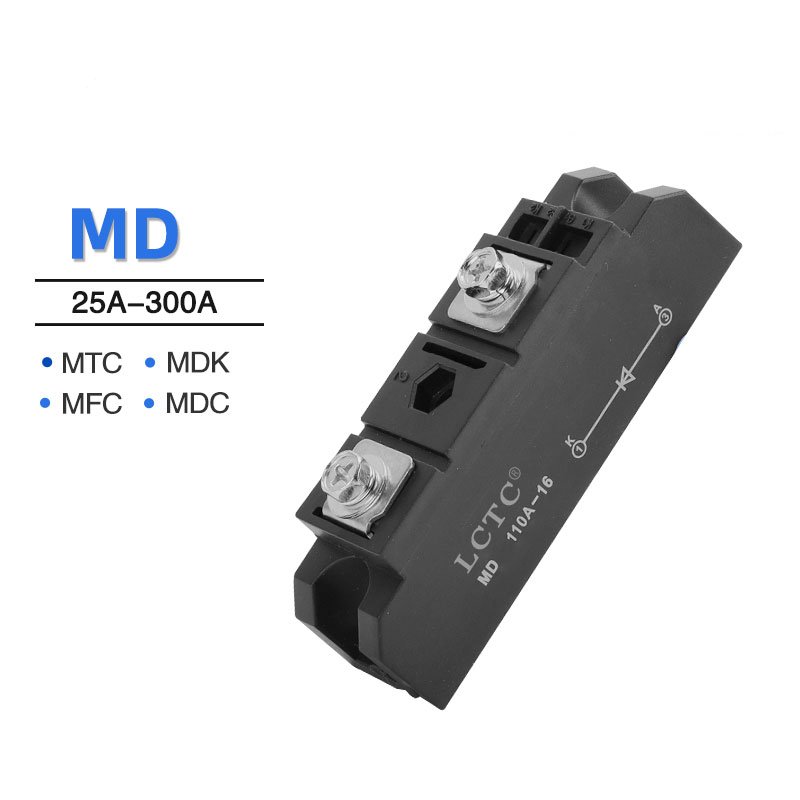

Product Overview & Applications:
Technical Parameters
Current Selection Table
| Product model | Output current (resistive load) |
| MD25A | 11A |
| MD55A | 25A |
| MD70A | 32A |
| MD90A | 41A |
| MD110A | 50A |
| MD130A | 59A |
| MD160A | 72A |
| MD200 | 90A |
| MD250A | 113A |
| MD300A | 135A |
Product Parameters
| Sign | Parameters | Test Conditions | Junction temp | Parameter Value-Minimum | Parameter Value-Typical | Parameter Value-Maximum | Units |
| IF(AV) | Forward Average Current | 180° half sine wave, 50HZ | 150 | — | — | 110 | A |
| Double-sided heat dissipation, TC=100℃ | |||||||
| IF(RMS) | root mean square current | 150 | — | — | 173 | A | |
| VRRM | Reverse repetitive peak voltage | VRRM tp=10ms | 150 | 500 | — | 2500 | V |
| VRSM=VRRM+200V | |||||||
| IRRM | Reverse repetitive peak current | VRM=VRRM | 150 | — | — | 8 | mA |
| IFSM | Forward non-repetitive surge current | 10ms bottom width, sine half wave | 150 | — | — | 2.6 | kA |
| I2t | Inrush current squared time product | VR=0.6VRRM | 150 | — | — | 34.4 | A2s×103 |
| VFO | Threshold voltage | 150 | — | — | 0.8 | V | |
| rF | Slope Resistor | 150 | — | — | 1.74 | mΩ | |
| VFM | Forward peak voltage | IFM=330A | 25 | — | — | 1.15 | V |
| Rth(j−c) | Thermal Impedance (Junction to Case) | 180° sine wave, single-sided heat dissipation | — | — | — | 0.35 | ℃/W |
| Rth(c−h) | Thermal Impedance (case to heatsink) | 180° sine wave, single-sided heat dissipation | — | — | — | 0.15 | ℃/W |
| Viso | insulation voltage | 50Hz, R.M.S, T=Imin,iso,ImA(max) | — | 2500 | — | — | V |
| FM | Mounting torque (M5) | — | — | 4 | — | N-m | |
| FM | Mounting torque (M6) | — | — | 6 | — | N-m | |
| Tstq | Storage temperature | — | -40 | — | 125 | ℃ | |
| Wt | quality | — | — | — | 160 | g | |

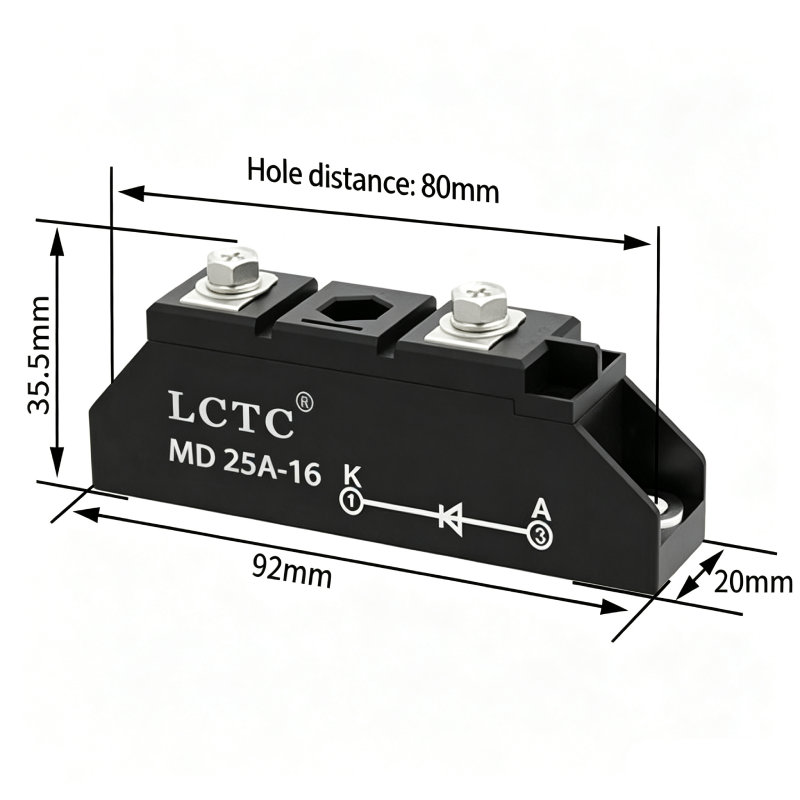

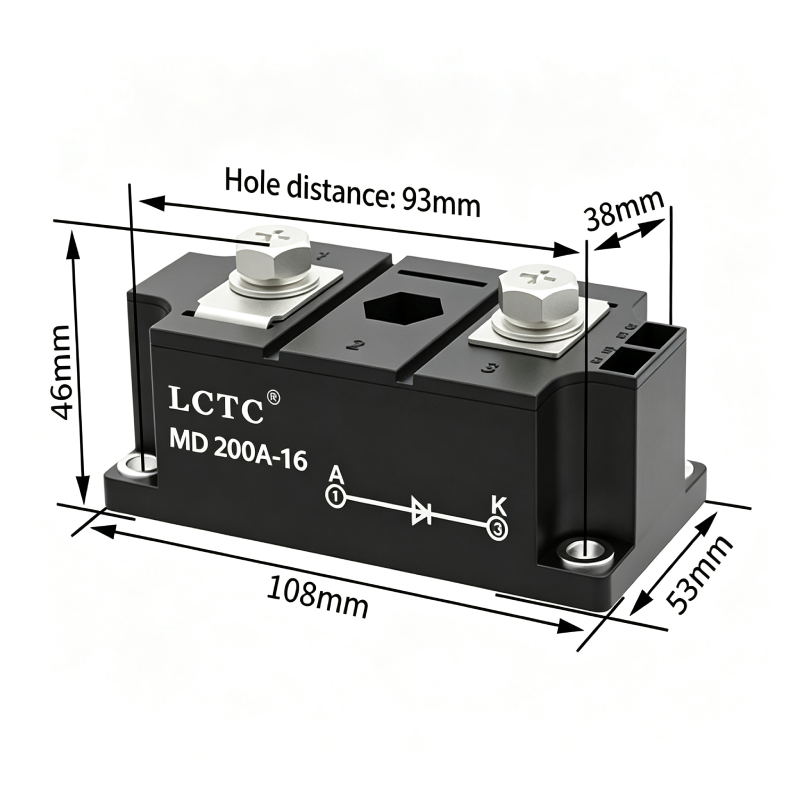

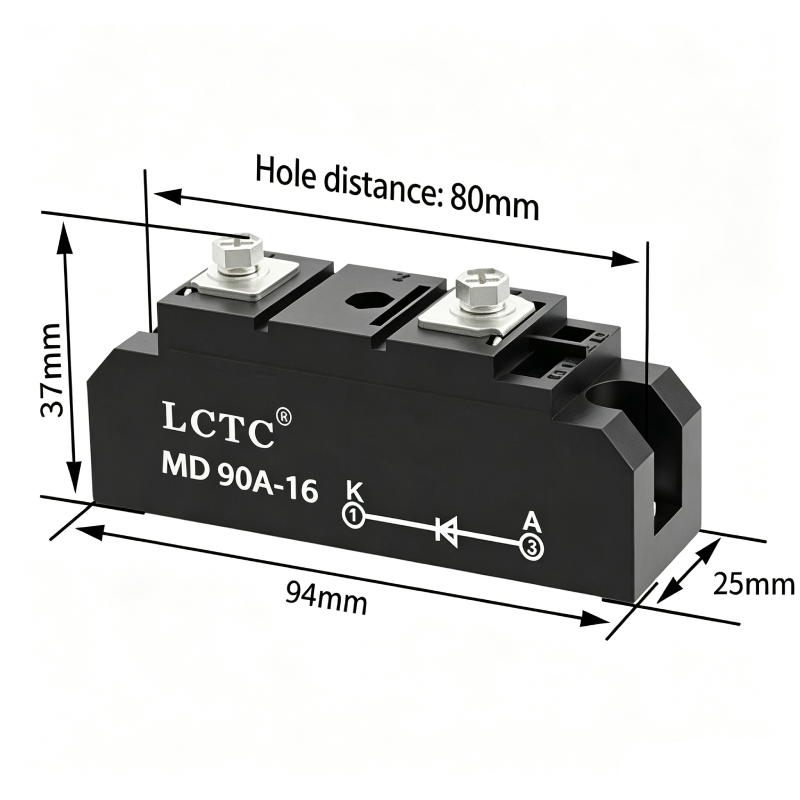

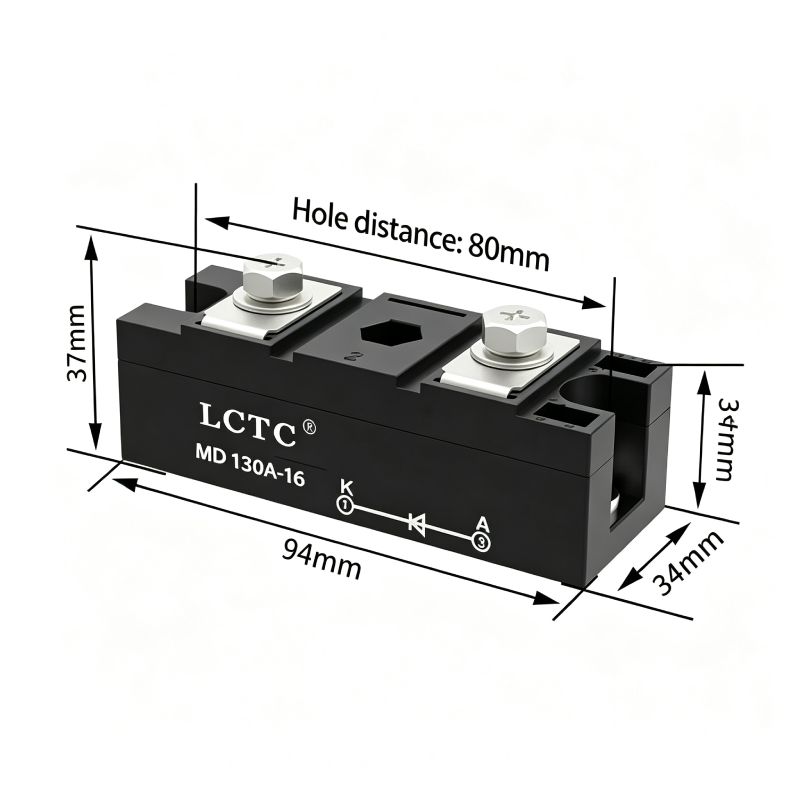

| Outline | shape | — | — | — | — | — |
