PID Temperature Controller Designed for Long-Term Use
Are you worried that your device cannot precisely control the temperature? Then LCTC might be something for you. We specialize in the production and sale of electrical components, especially PID temperature controllers. Our goal is to provide more users with high-precision and fast-response product solutions.
The team and factory of LCTC have nearly 10 years of experience and provide reliable products and services. From the initial questions to those after placing an order, our staff will patiently answer all your questions.
LCTC products have passed international professional organization certifications such as CE, ISO9001, and RoHS. If you are interested in our products, please send us an inquiry. We can provide you with the most suitable solution.

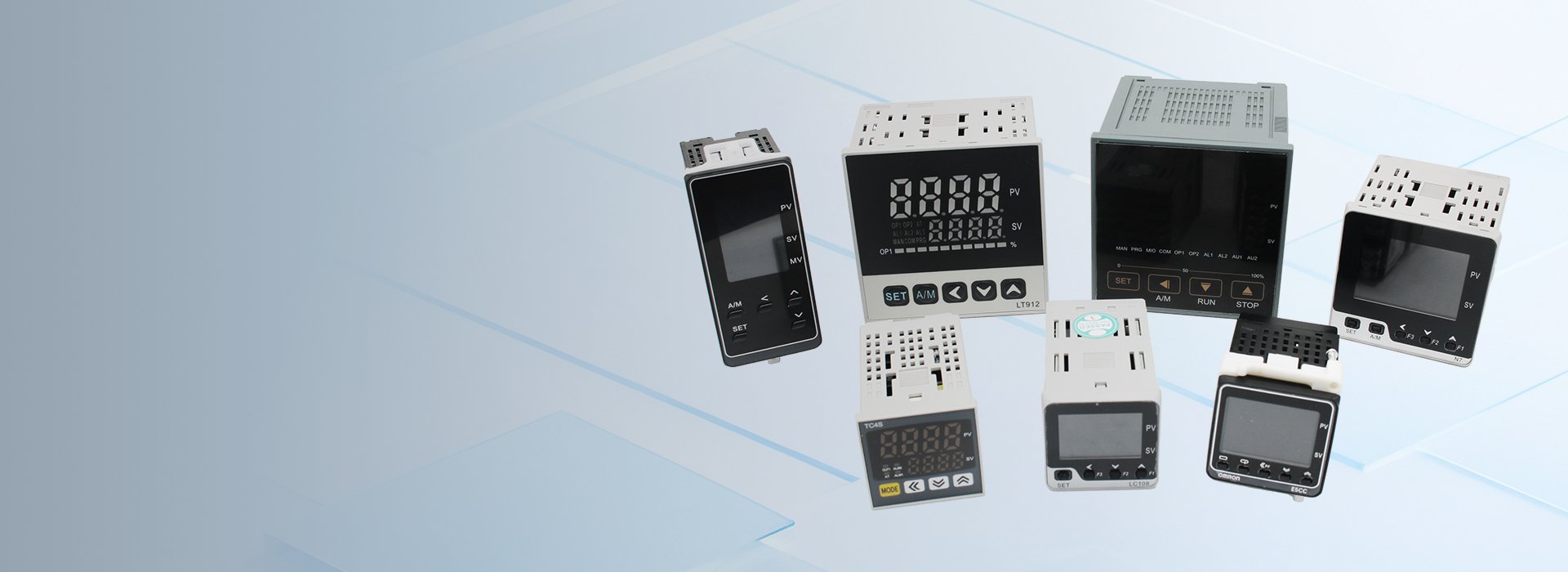

LCTC Product

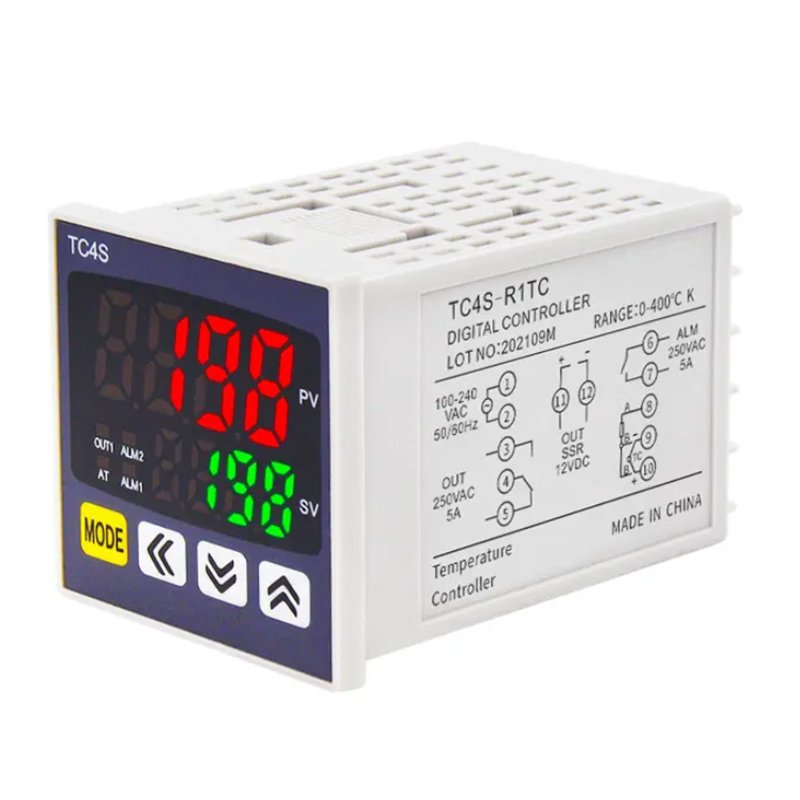

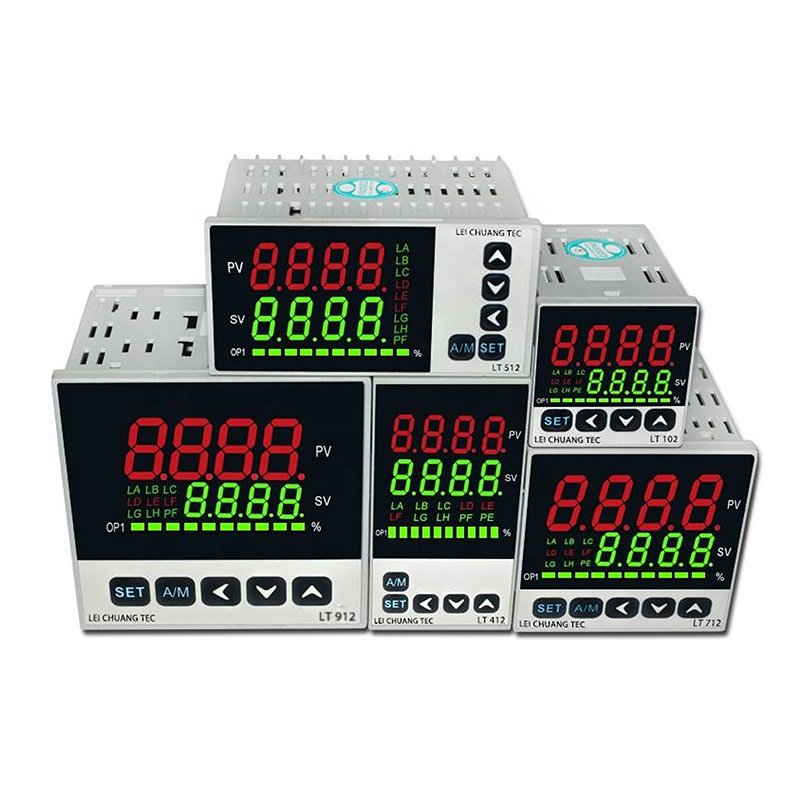

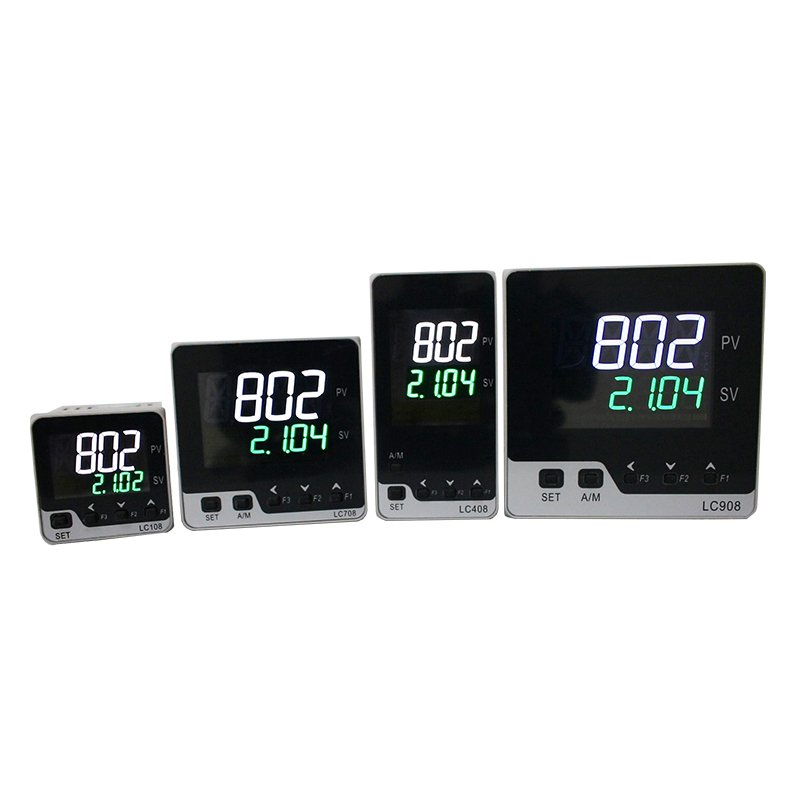

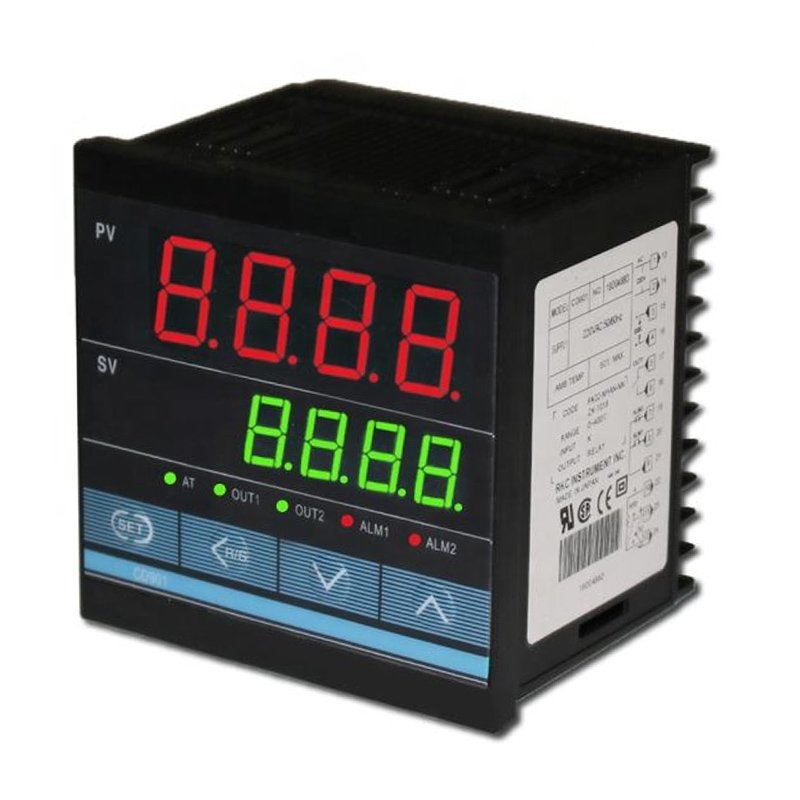

LCTC PID temperature controllers come in five series.
Supports multiple signal input options, including TC, RTD (K, J, E, T, S, PT100, Cu100, Cu50, It), etc.
Feature of LCTC PID Temperature Controller
The LCTC PID temperature controller has the following advantages:
Compared with traditional temperature control methods, the PID temperature controller accelerates output and responds more quickly under large temperature fluctuations.
The LCTC PID temperature controller can adjust the output according to changes in ambient temperature, load and system aging.
It can prevent frequent switching to full power, overheating and cooling, thereby reducing equipment wear and energy consumption.
The LCTC PID temperature controller features clear and easy-to-read digital display, facilitating the monitoring and adjustment of equipment status.

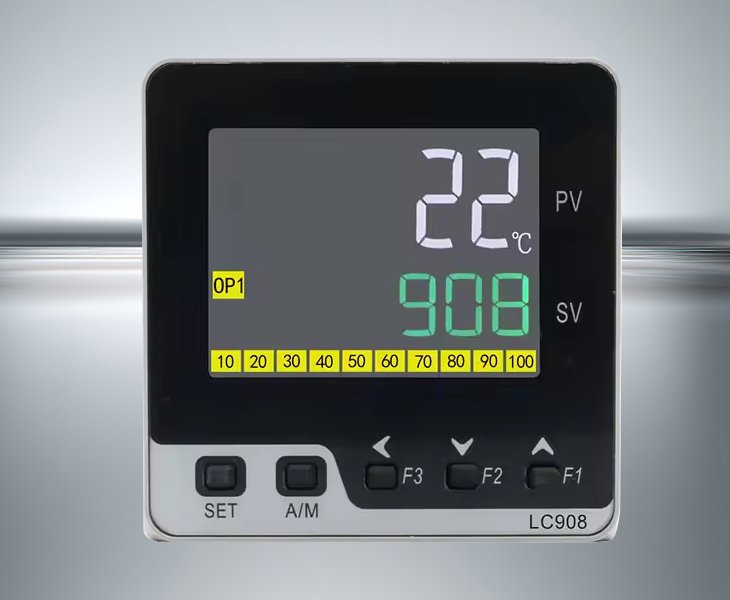

Precise PID Temperature Control
The LCTC PID temperature controller uses a PID algorithm to ensure precise control by bringing the actual temperature close to the setpoint.
The PID consists of three parts: the P stands for “Proportional,” the I stands for “Integral,” and the D stands for “Derivative.” P regulates output based on the current temperature deviation: the greater the deviation, the higher the output; I accumulates past temperature deviations, eliminating those that persist over time; D performs anticipatory adjustment based on the trend of changes, limiting excessive oscillation and reducing temperature fluctuations.
The entire process continuously adjusts the output power based on temperature deviation and rate of change, reducing temperature spikes and fluctuations, helping the system quickly reach and maintain the desired temperature.
Application of PID Temperature Controller
The LCTC PID temperature controller offers a variety of features suitable for different industries.

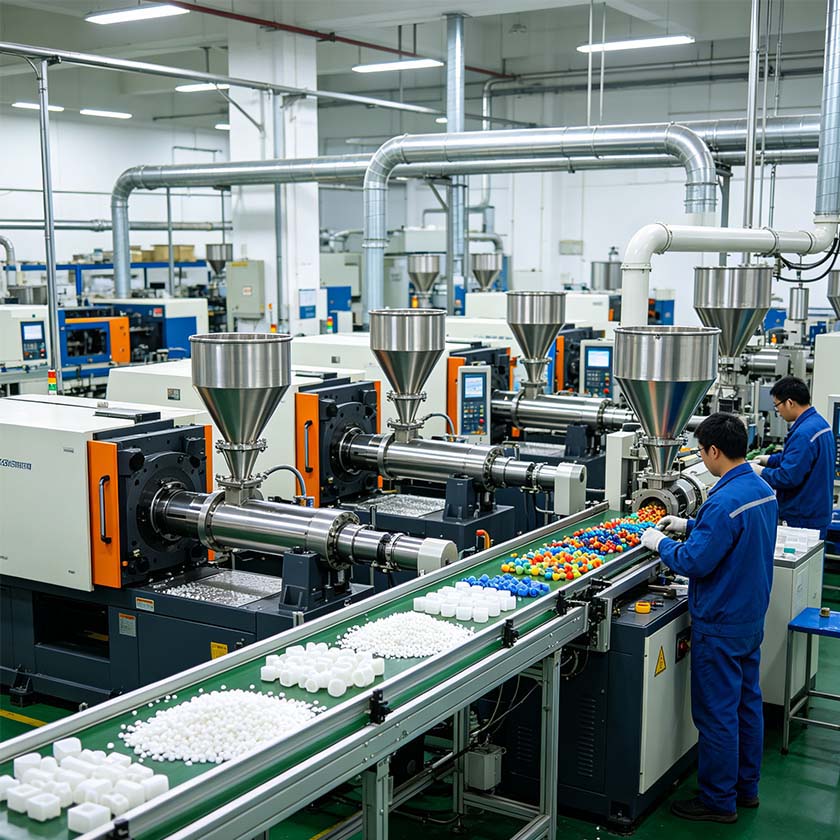

The LCTC PID temperature controller can dynamically adjust heating power based on temperature variations and is particularly suitable for plastic processing applications requiring continuous, stable, and fast-responding temperature control. Such as injection molding machines, plastic extruders, hot runner systems, plastic heat sealers, plastic processing ovens.

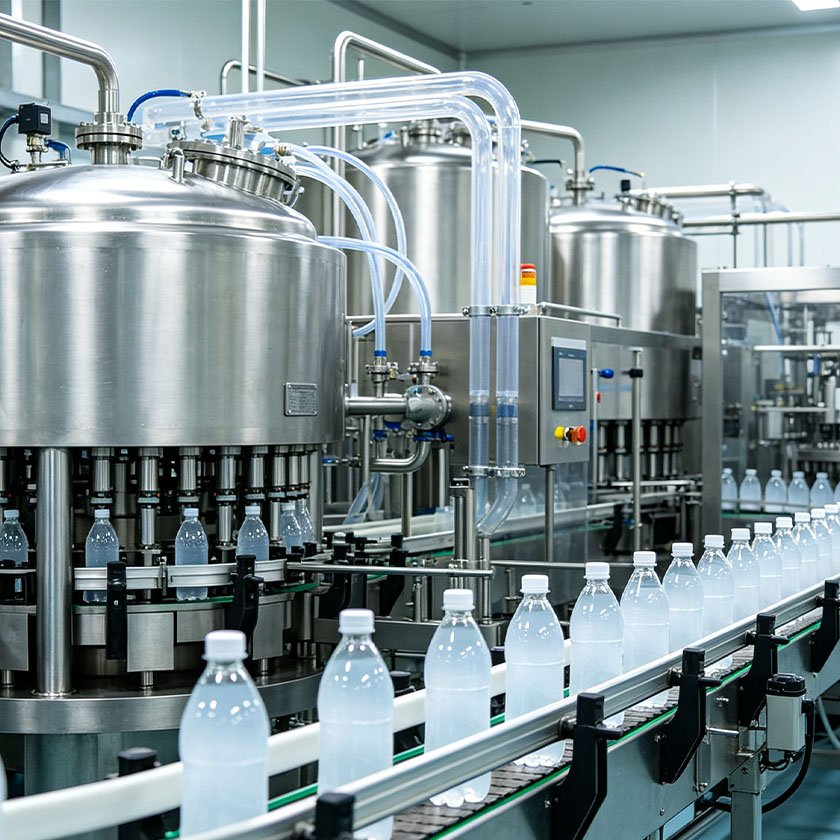

The PID controller continuously monitors temperature and adjusts heating power, reducing temperature fluctuations and ensuring greater uniformity in the production processes of different batches. It is particularly suitable for food production, where stability, continuity, and repeatability are required. Typical equipment includes industrial ovens, food warmers, pasteurizers, food processing machines, packaging & sealing machines.

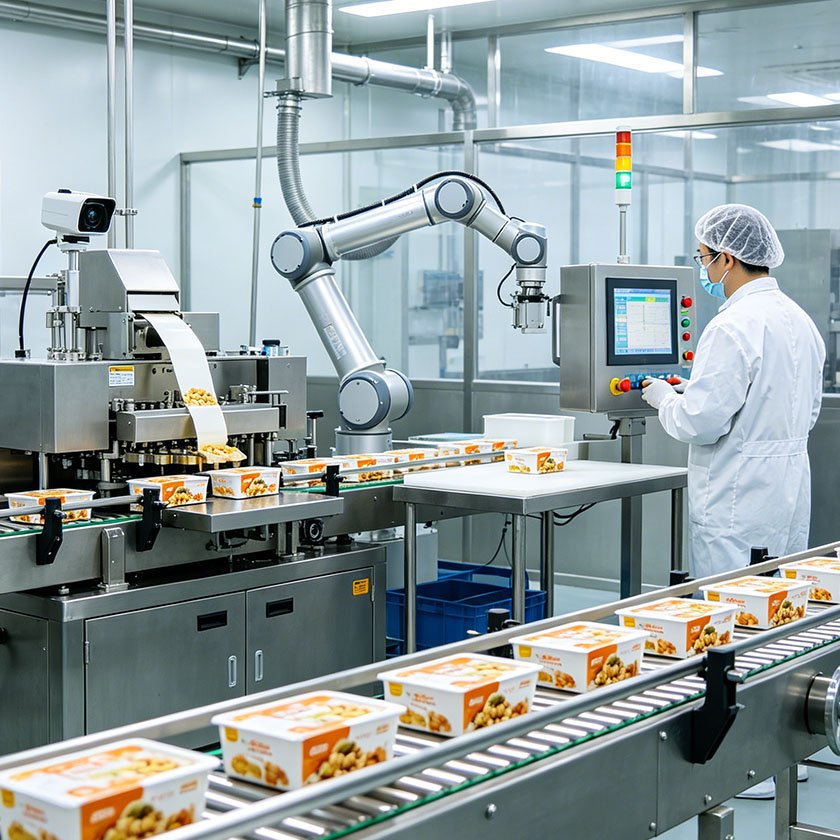

The PID temperature controller responds quickly to temperature changes and keeps the heating elements operating at a temperature close to the desired level. It is particularly suitable for the packaging industry, especially in heat sealing, heat sealers, bag sealing machines, shrink wrapping machines, blister packaging machines, automatic packaging lines.

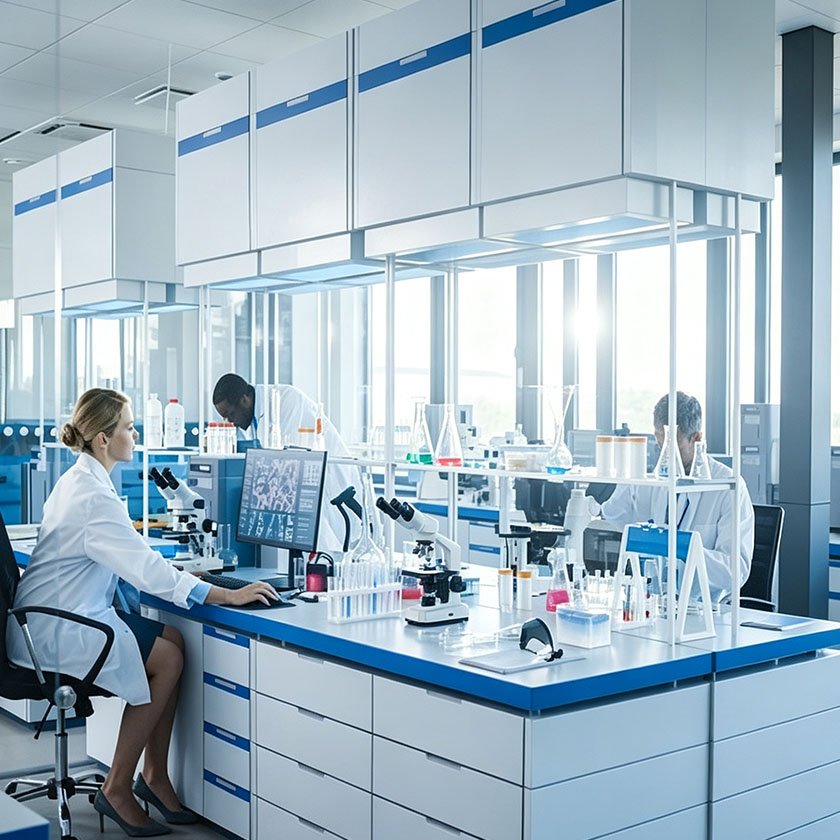

The PID temperature controller, thanks to its precise temperature control and stable temperature maintenance, is often more suitable for demanding and sensitive equipment, such as laboratory devices, and effectively helps improve issues like test instability, inconsistent results, and poor repeatability. Typical equipment includes laboratory ovens, incubators, water baths, heating plates, environmental test chambers.

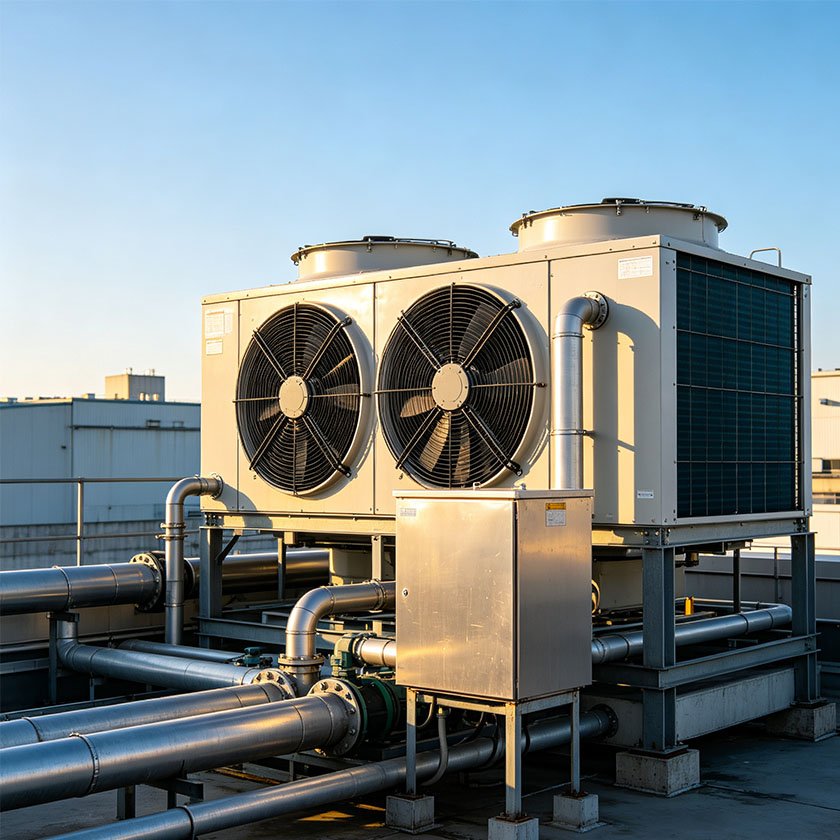

The PID temperature controller LCTC continuously monitors the ambient temperature via a temperature sensor and automatically adjusts the control output based on the temperature difference. It effectively resolves issues such as temperature fluctuations and instability in ambient temperature. Typical equipment includes temperature control systems, cold storage equipment, heating systems, air handling systems, industrial refrigeration equipment.
Choosing the right PID Temperature Controller depends on your temperature range, sensor type, output requirements, installation size, and communication needs.
Selecting a controller based on the complete control system rather than only the temperature range. First, confirm the compatible input type, such as K/J/E/T/S thermocouple, PT100 RTD, or analog signal input. Then select the appropriate output, including relay, SSR, or 4-20mA output, according to your heating load and control method.
For industrial automation applications, we recommend choosing a PID Temperature Controller with RS485 Modbus for easier PLC integration.
LCTC PID Temperature Controllers support multiple temperature sensor inputs to meet different industrial temperature measurement requirements.
Compatible sensors include K, J, E, T, and S thermocouples, PT100, Cu50, and Cu100 RTD sensors, 0-5V, 0-10V, 1-5V, and 4-20mA analog inputs.
Select the sensor according to your working temperature range, required accuracy, response speed, and operating environment.
The correct output type depends on your heating system and control requirements.
A relay output PID controller is suitable for simple temperature control applications with lower switching frequency.
An SSR output PID controller is recommended for industrial heating systems requiring fast and frequent switching, such as plastic processing machines, ovens, and heating equipment.
A 4-20mA or 0-10V output PID controller is commonly used in proportional control systems and industrial automation applications.
SSR output is usually the preferred choice for electric heating applications because it provides faster response and longer operating life compared with mechanical switching.
Yes, LCTC PID Temperature Controller can connect to a PLC through communication interfaces or control signals depending on the model configuration.
LCTC PID controllers support integration methods including:
RS485 Modbus communication
4-20mA analog output
0-10V analog output
Relay or SSR control signals
Connecting a PID controller with a PLC allows users to monitor temperature data, adjust settings remotely, and manage automated production processes.
For applications such as industrial ovens, plastic extrusion machines, and automated heating systems, we recommend selecting a PID Temperature Controller with RS485 communication for easier system integration.
A PID Temperature Controller reduces temperature overshoot by continuously adjusting the heating output according to temperature deviation and changing temperature conditions.
Unlike traditional ON/OFF controllers that simply switch the heater fully on or off, PID control uses proportional, integral, and derivative adjustments to regulate output more smoothly.
For systems with high thermal inertia, such as industrial ovens, heat treatment equipment, and plastic processing machines, LCTC recommends using PID control with proper parameter tuning to achieve better temperature performance.
The auto-tuning function in PID Temperature Controllers automatically calculates suitable PID parameters according to the heating characteristics of the system.
During the auto-tuning process, the controller analyzes temperature response and adjusts the proportional (P), integral (I), and derivative (D) parameters to improve control performance.
Auto-tuning helps users achieve faster temperature response, reduced overshoot, more stable temperature control, easier commissioning.
For applications where the heating load changes frequently or manual PID adjustment is difficult, LCTC suggests using the auto-tuning function to simplify setup and improve control reliability.
LCTC provides panel mount PID Temperature Controllers in multiple sizes to match different equipment designs and control cabinets.

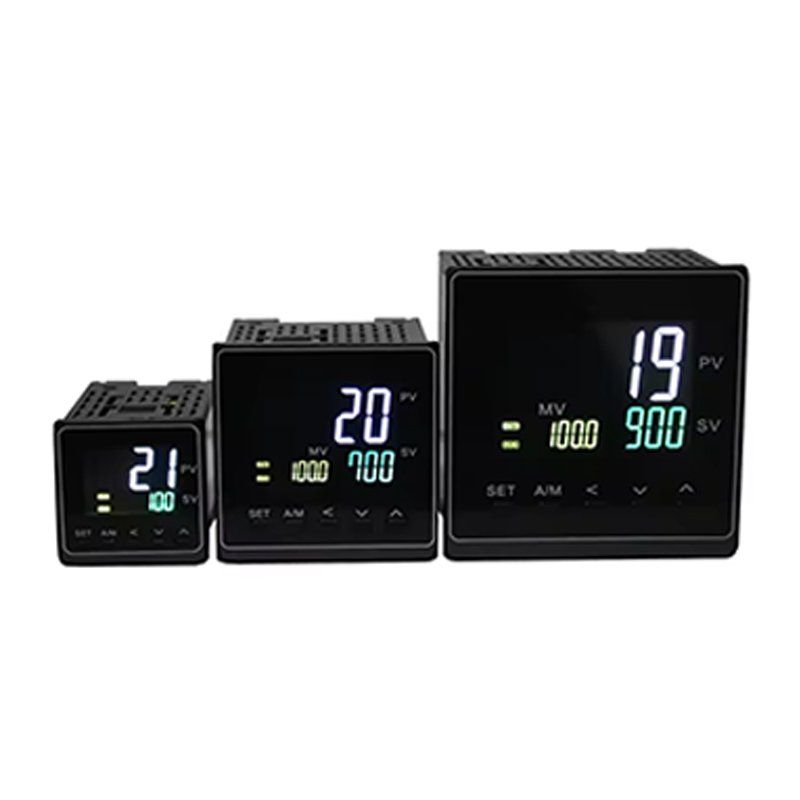

Available panel sizes include 48×48mm, 48×96mm, 72×72mm, 96×96mm.
Selecting the correct panel cutout size helps ensure easy installation and compatibility with existing equipment.
Confirm the available mounting space and required display size before install. For equipment upgrades or replacement projects, we can help select a suitable PID controller size based on your current panel design.
Yes, LCTC PID Temperature Controllers are suitable for multi-zone temperature control in plastic extrusion applications. It have SSR output for fast switching, thermocouple input compatibility, RS485 Modbus communication for centralized monitoring
Plastic extrusion equipment usually requires independent temperature control for different heating zones, including feeding zones, compression zones, and die zones.
Using PID controllers for each zone helps:
Maintain consistent processing temperatures
Reduce temperature fluctuations
Improve extrusion quality
Minimize material waste
The traditional switch temperature control shows significant fluctuations and inaccuracy, which can easily lead to overheating or abnormality. The LCTC PID temperature controller offers smoother control, smaller errors and faster response.
Yes, LCTC provides OEM and ODM PID Temperature Controller solutions for industrial customers and equipment manufacturers.
For OEM projects, our engineers work with customers to understand their equipment requirements, control methods, and operating conditions before recommending the appropriate PID controller configuration.
Whether you need standard PID controllers for bulk purchasing or customized solutions for specific equipment, LCTC can support your temperature control requirements.
