QZJ50A DC Contactor
- Reliable DC Contactor for Industrial Applications.
- Available in 50A, 100A & 200A Ratings.

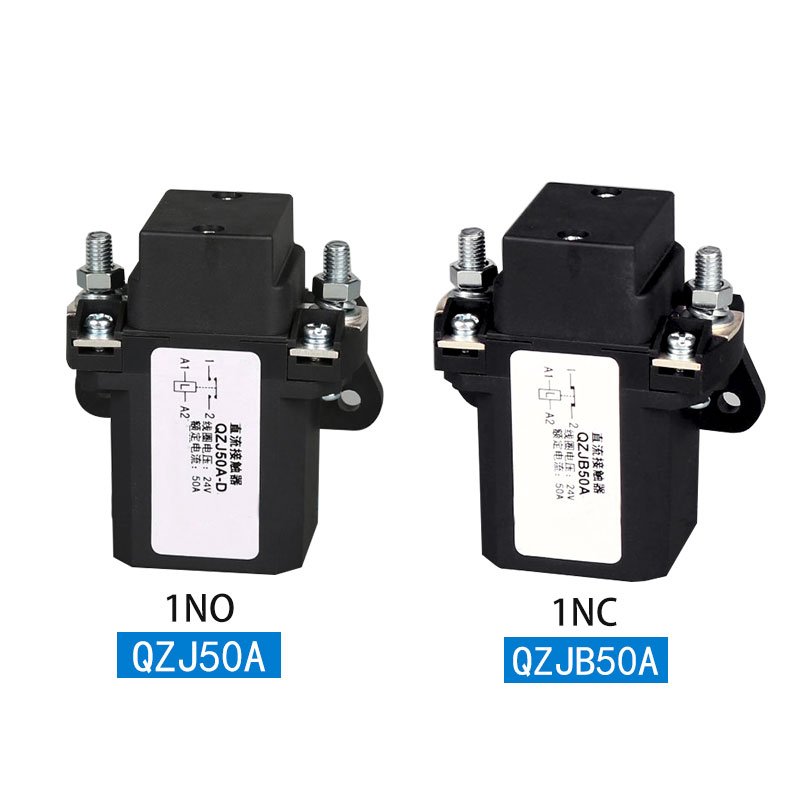

- 1NO & 1NC Contact Configurations.
- CE Certified for Safety & Reliability.
- Compact Design, Easy Installation.
Product Overview & Applications:
Compatible with a broad voltage range from 6V to 120V, it built to withstand heavy duty use with a high load capacity of 100A 1NO.
Technical Parameters
Product Specifications | ||
| Item | QZJ50A-D | QZJB50A |
| Contact Form | 1NO | 1NC |
| Rated Current | 50A | |
| Coil Voltage | 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V | |
| Contact Voltage | ≤150V DC | |
| Coil Power | 5–9W | |
| Operate Time | 15ms | |
| Release Time | 5ms | |
| Electrical Life | 20,000 Cycles | |
| Mechanical Life | 300,000 Cycles | |
| Ambient Temperature | -25°C ~ +70°C | |
| Protection Class | IP40 | |
| Certification | CE | |

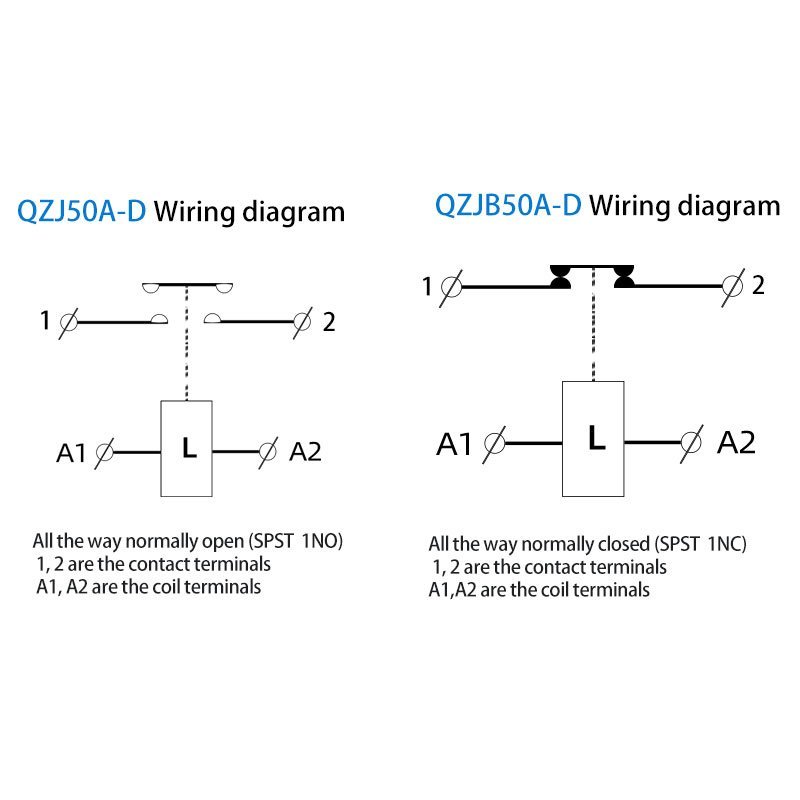

Wiring diagram
Download
