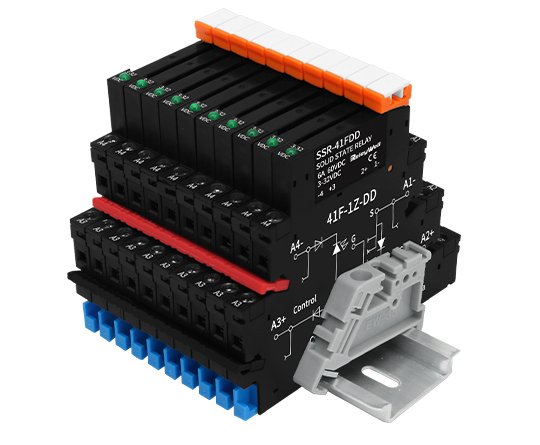

41F Slim Relay Socket DD 10pcs
- No mechanical wear, offers a longer service life.
- Ideal for space-sensitive and high-density installations.
- Input:3-32Vdc,Output:5-60Vdc
- Semiconductor-controlled for noise-free switching.
- Used for development boards like ESP32 and Raspberry Pi.
- Convenient, detachable, can be used with 1.37in (35mm) guide rail
Product Overview & Applications:
Solid State Relay (SSR) products utilize SCRs or MOSFETs to achieve precise and rapid control over loads. The control circuitry is optically coupled and isolated from the load, offering high dielectric strength to provide protective isolation for upstream control components.
The DIN Rail Mounted Slim Relay SSR Solid State Relay is an essential component for various industrial and commercial applications. With its robust design and reliable performance, this SSR relay dc ensures seamless control of DC to AC systems. The slim SSR relay is engineered to operate within a wide input voltage range of 3-32VDC, making it suitable for diverse power sources. Its output voltage range of 24-250VAC allows for versatile use in controlling AC loads, making it a valuable addition to any electrical setup.
Solid-state relays have gained widespread adoption and application across various fields, including hazardous and explosion-proof environments, lighting control systems, electromechanical automation control, and medical equipment.
Technical Parameters
ParameterSpecification | |
| Model: | SSR-41F DD |
| Control Voltage: | 3-32VDC |
| Peak Current: | 6A |
| Control Currentt: | ≤16mA |
| Off Leakage Currentt: | ≤2mA |
| Insulation Resistancet: | 1000MΩ |
| Ambient Temperaturet: | -30~+75°C |
| Operating Current: | 10mA-1.5A |
| Installation Method: | Rail installation |
| Control Mode: | DC control DC |
| load Voltage: | 5-60VDC |
| Off State Time: | ≤10ms |
| ON-state voltage dropt: | ≤0.5V |
| Dielectric Strengtht: | 2500VAC |
| Weight: | 28g / 3.4g |
| The work instructionst: | LED indicator |
Precautions
1.Due to the relay’s compact size, please ensure that the operating current does not exceed the rated limit.
（DC-AC: Operating Current 50mA-1A）（DC-DC: Operating Current 10mA-1.5A）
2. If You Want To TestYou Need To Add A Load To The Solid State Relay

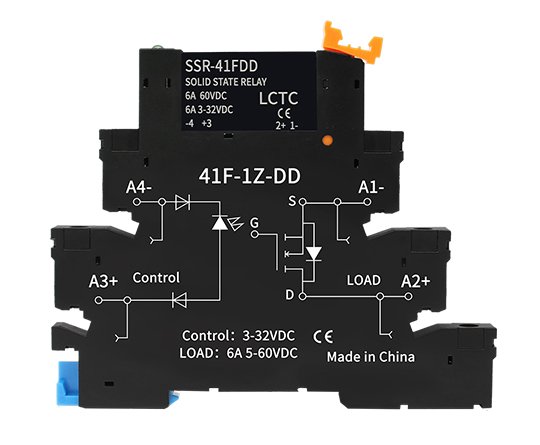

Wiring Diagram
